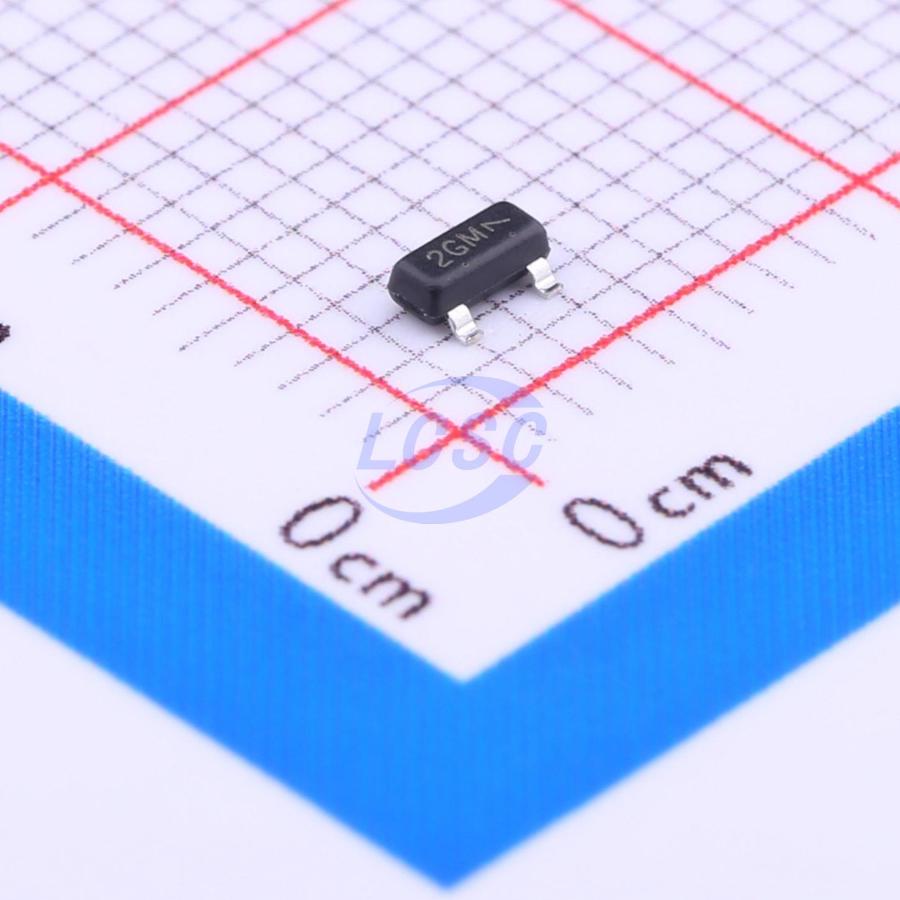

The LMBTA56LT1G is a PNP Silicon Transistor manufactured by LRC Leshan Radio Co., Ltd. This component is suitable for various electronic applications requiring a bipolar junction transistor.
Key electrical characteristics include a collector-emitter breakdown voltage (VCEO) of -80V and a continuous collector current (IC) of -500mA. The DC current gain (HFE) is specified at 100 for both -10mA and -100mA collector currents. The collector-emitter saturation voltage (VCE(sat)) is a maximum of -0.25V at -100mA collector current and -10mA base current. The base-emitter turn-on voltage (VBE(on)) is typically -1.2V at -100mA collector current and -1V collector-emitter voltage. The current-gain bandwidth product (fT) is a minimum of 50MHz at -100mA collector current and -1V collector-emitter voltage.
This transistor is housed in a SOT-23 package, making it suitable for surface-mount applications. The device operates within a junction temperature range of -55°C to +150°C and a storage temperature range of -55°C to +150°C. The total power dissipation is rated at 409mW at 25°C ambient temperature on an FR-4 board, with a thermal resistance of 305°C/W.
The LMBTA56LT1G is declared to be RoHS compliant and Halogen Free.
The collector-emitter breakdown voltage (VCEO) for the LMBTA56LT1G is -80V.
The continuous collector current (IC) rating for the LMBTA56LT1G is -500mA.
The DC current gain (HFE) of the LMBTA56LT1G is 100 at IC = -10 mA, VCE = -1 V and at IC = -100 mA, VCE = -1 V.
The LMBTA56LT1G transistor is supplied in a SOT-23 package.
The operating temperature range for the LMBTA56LT1G is -55°C to +150°C.
Yes, the LMBTA56LT1G is declared to be RoHS compliant.
Yes, the LMBTA56LT1G is declared to be Halogen Free.
