| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53,343 pcs
|
53343 pcs | On Request | 1 | On Request | On Request | 2015 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Halogen Free | |
| Mounting Type | |
| Peak Forward Surge Current | |
| Weight |

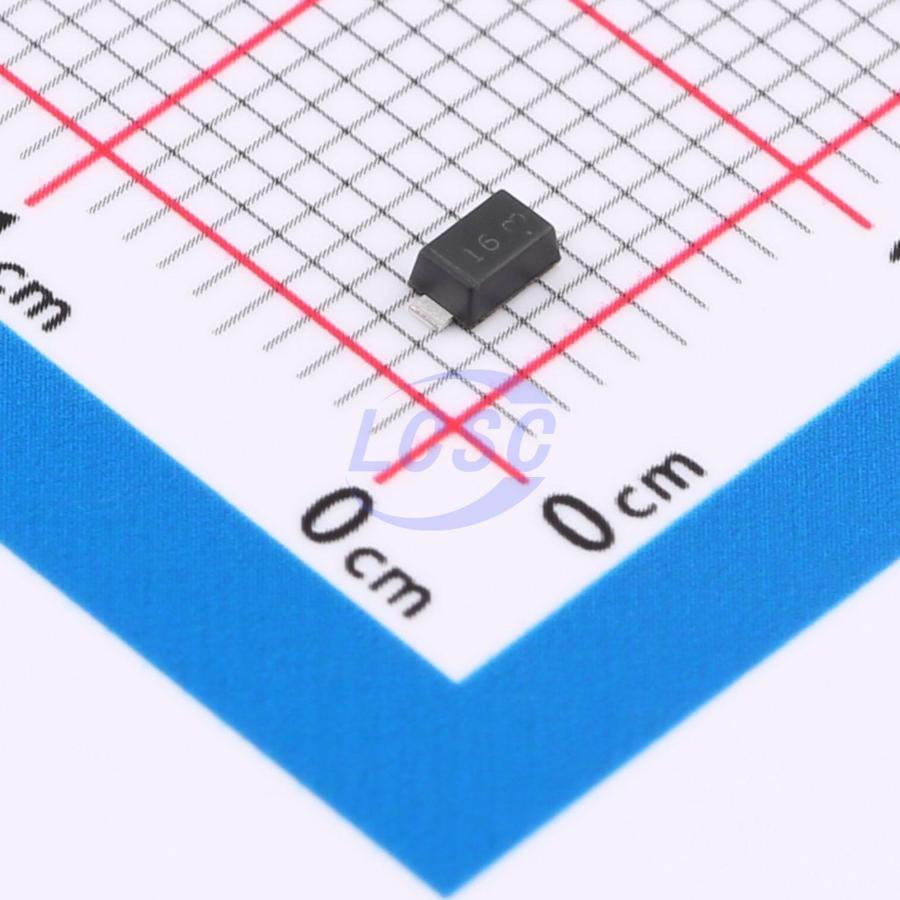

The LMBR160FT1G is a Schottky Barrier Rectifier manufactured by LRC Leshan Radio Company. This component is designed for applications requiring efficient rectification with low voltage drop. It features a maximum repetitive peak reverse voltage of 200V and a maximum average forward current of 1A at 75°C.
The device exhibits a low maximum instantaneous forward voltage, with a typical value of 0.55V at 1.0A and 25°C. The operating junction temperature range is from -55°C to +150°C, with a storage temperature range of -65°C to +175°C. The rectifier is housed in a SOD123-FL/MINI SMA surface mount package.
Key electrical characteristics include a peak forward surge current of 30A and a maximum DC reverse current of 0.5mA at 25°C. The thermal resistance (junction to ambient) is typically 110°C/W. The component is constructed with a green epoxy compound, indicating it is Halogen Free.
200V.
1A at 75°C.
0.55V at 1A and 25°C.
30A for 8.3ms.
-55°C to +150°C.
SOD123-FL/MINI SMA.
Surface Mount.
