| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,163 pcs
|
2163 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Function | |
| Lead Spacing | |
| Mounting Type | |
| Noise Floor | |
| Number of Channels | |
| Operating Temperature | |
| Package Quantity | |
| Resolution | |
| Supplier Device Package | |
| Voltage |
The LM98519VHB/NOPB from Texas Instruments is a highly integrated 10-bit, 65 MSPS imaging signal processor. It is engineered for demanding applications such as digital color copiers and scanners, offering a six-channel architecture for high-speed signal throughput.
Key electrical specifications include a 10-bit resolution and a 65 MSPS sampling rate per channel. The device supports a single 3.3V supply and features a serial control interface. It operates within a temperature range of 0°C to 70°C, making it suitable for various consumer video environments.
This processor utilizes Correlated Double Sampling (CDS) or Sample and Hold (SH) processing. It offers independent gain and offset correction for each channel, along with digital black and white level calibration. The fully differential processing channels contribute to exceptional noise immunity, achieving a low noise floor of -67.5 dB.

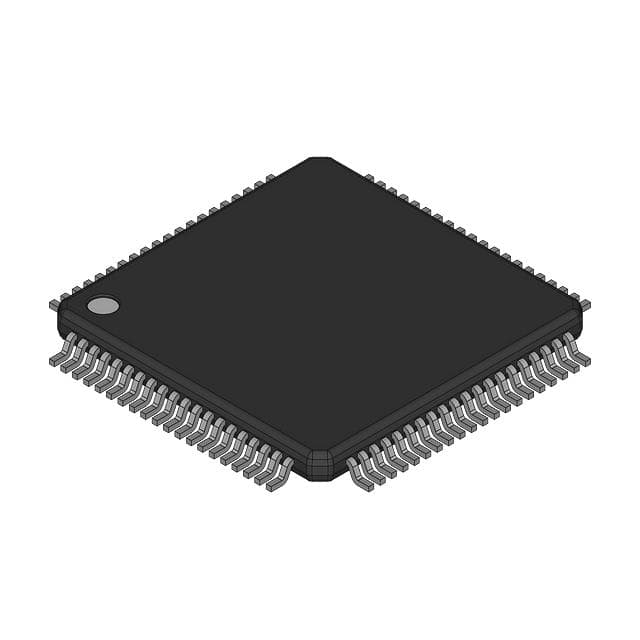

The LM98519VHB/NOPB is available in an 80-TQFP package, designed for surface mounting. The package is supplied in a JEDEC tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.09 | $18.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM98519VHB/NOPB has a resolution of 10-bit.
The maximum sampling rate is 65 MSPS.
This device supports 6 channels.
The operating voltage range is 3.0V to 3.6V.
The operating temperature range is 0°C to 70°C.
It is supplied in an 80-TQFP package.
The noise floor is -67.5 dB.
