| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Outputs | |
| Output Current | |
| Output Type | |
| Package / Case | |
| SVHC Present | |
| Tolerance |

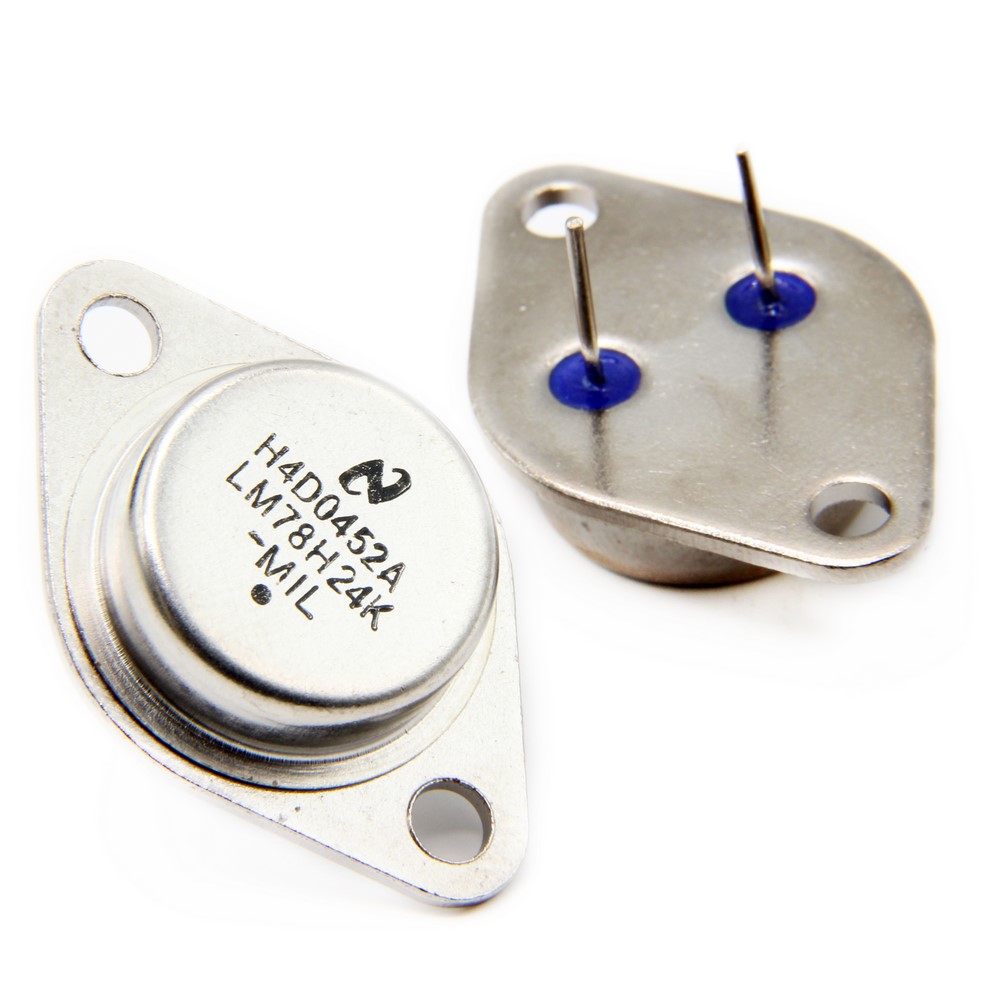

The LM78H24K is a fixed positive linear voltage regulator manufactured by National Semiconductor. This component is designed to provide a stable 24V output with a maximum output current of 1A. It operates within an input voltage range of 26V to 40V and features a fixed output voltage with a tolerance of 4%.
The regulator is housed in a TO-3 metal package, which is known for its excellent heat dissipation capabilities, making it suitable for high-power applications. The mounting type is Through Hole, facilitating integration into various circuit designs. The operating temperature range for this device is from 0°C to +125°C, ensuring reliable performance in demanding industrial environments.
Key internal protections include current limiting and thermal shutdown, safeguarding the device and the connected circuitry against overloads and overheating. Its low output noise makes it suitable for industrial and analog circuits. Applications include powering relays, solenoid valves, PLCs, industrial automation equipment, sensors, DC motors, and LED strips.
With its robust construction, internal protections, and wide operating temperature range, the LM78H24K is a dependable choice for applications requiring a stable 24V power rail in industrial settings.
The output voltage is fixed at 24V.
The maximum output current is 1A.
The input voltage range is 26V to 40V.
The output voltage tolerance is ±4%.
The operating temperature range is 0°C to +125°C.
The device comes in a TO-3 through-hole package.
The output is fixed and positive.
