| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

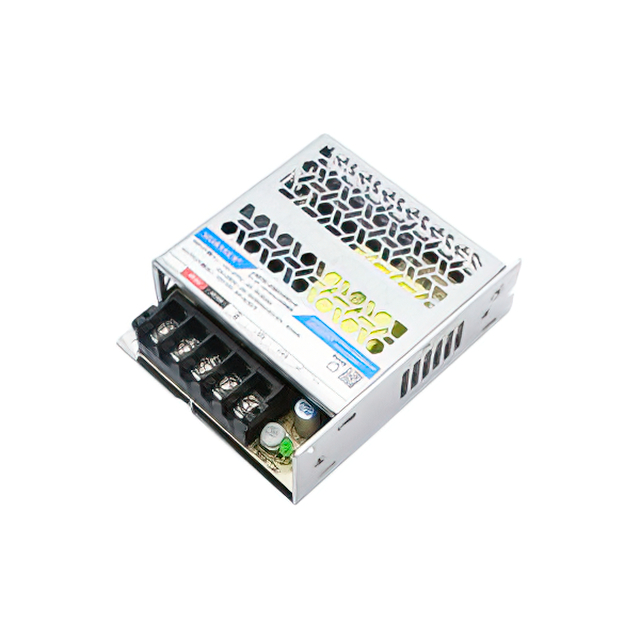

The Mornsun LM75-23B12R2-Q is an enclosed AC/DC converter designed for various applications including household appliances and ITE (Commercial). This unit provides a single 12V output with a current rating of 6A, delivering a total power of 72W.
Key specifications include an input voltage range of 80-305 VAC or 100-430 VDC, and an efficiency of 89%. The converter operates within a temperature range of -40°C to 85°C with derating. It features adjustable output and DC input capability, along with 4 kV of isolation voltage.
The physical dimensions are 99.0mm x 82.0mm x 30.0mm. It is designed for chassis mounting and comes with a conformal coating for protection. The LM75-23B12R2-Q meets standards such as 60335-1 and 62368-1.
The LM75-23B12R2-Q has a single output voltage of 12V with a current rating of 6A.
The power rating for the LM75-23B12R2-Q is 72W.
The operating temperature range for the LM75-23B12R2-Q is -40°C to 85°C, with derating.
The dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height.
The LM75-23B12R2-Q complies with standards 60335-1 and 62368-1.
