| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

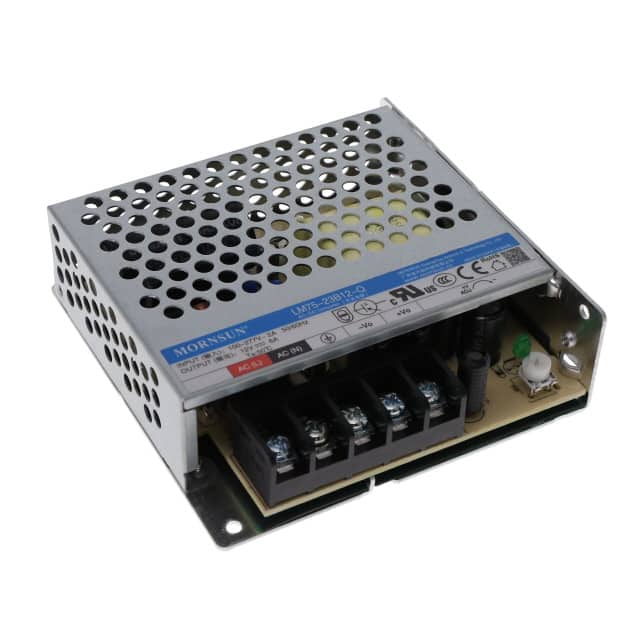

The LM75-23B12-Q from Morning Star Industrial is an enclosed, conformal coated AC DC converter designed for efficiency and versatility. It delivers 72W of power with a single output, capable of supplying 6A at 12V. The converter boasts an efficiency of 87% and operates within a temperature range of -30°C to 70°C with derating.
Designed for robust applications, it features adjustable output, DC input capability, and universal input voltage. The unit is approved by major agencies including CB, CCC, CE, cURus, and UL, and complies with standards like 60335-1 and 62368-1. Its dimensions are 99.0mm x 97.0mm x 30.0mm, making it suitable for chassis mounting.
This converter is suitable for ITE (Commercial) and household appliance applications. It offers an isolation voltage of 4 kV, ensuring safety and reliability in demanding environments. The RoHS, REACH, and MSL compliance information is available, though noted with low confidence.
The LM75-23B12-Q provides 72W of power.
The output current is 6 A.
The operating temperature range is -30°C to 70°C (With Derating).
The LM75-23B12-Q is designed for chassis mount.
Key features include adjustable output, DC input capability, and universal input.
