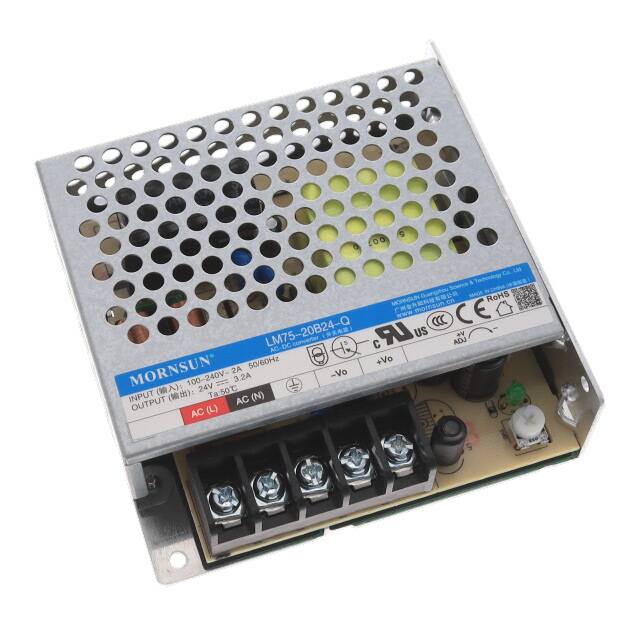

The Mornsun America, LLC LM75-20B24-Q is an enclosed AC/DC converter with conformal coating, designed for applications requiring a stable 24V output at 3.2A, delivering a total of 77W. It supports a wide input voltage range of 85-264 VAC and 120-370 VDC, making it suitable for universal use. The converter offers an isolation voltage of 4 kV and an efficiency of 90%.
Designed for robust performance, it operates within a temperature range of -30°C to 70°C with derating. Key features include adjustable output, DC input capability, and universal input. The unit is designed for chassis mounting, with dimensions of 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm). It holds approvals from CB, CCC, CE, cURus, and UL, adhering to standards 60335-1 and 62368-1.
This converter is suitable for household appliances and ITE (Commercial) applications. Its construction includes conformal coating for added protection in demanding environments.
The LM75-20B24-Q provides a single output of 24V at 3.2A.
The input voltage range is 85 to 264 VAC or 120 to 370 VDC.
The operating temperature range is -30°C to 70°C with derating.
The isolation voltage is 4kV.
The typical efficiency is 90%.
The dimensions are 99.0mm x 97.0mm x 30.0mm.
It complies with standard numbers 60335-1 and 62368-1.
