| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

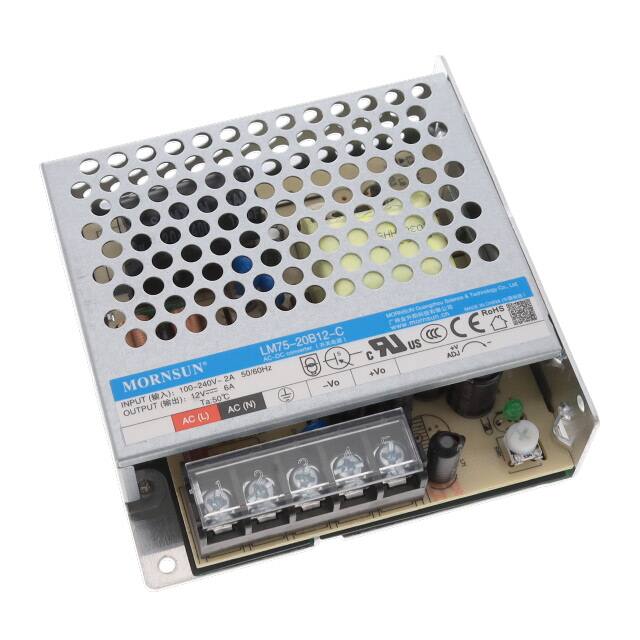

The Morning Star Industrial LM75-20B12-C is an enclosed AC/DC converter with a power rating of 72W and an output current of 6A. It operates with an efficiency of 88% and provides 4kV of isolation voltage. This converter is designed for chassis mounting and offers features such as adjustable output, DC input capability, and universal input.
Designed for applications including household appliances and ITE commercial equipment, the LM75-20B12-C operates within a temperature range of -30°C to 70°C with derating. It meets safety standards including 60335-1 and 62368-1, and holds approvals from CB, CCC, CE, cURus, and UL. The dimensions are 99.0mm in length, 97.0mm in width, and 30.0mm in height.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The unit has a single output and is suitable for various industrial and commercial uses requiring a reliable AC/DC power conversion solution.
-30°C to 70°C with derating.
12V output at 6A (72W).
88% efficiency.
4kV isolation voltage.
CB, CCC, CE, cURus, UL.
99.0mm x 97.0mm x 30.0mm.
