| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

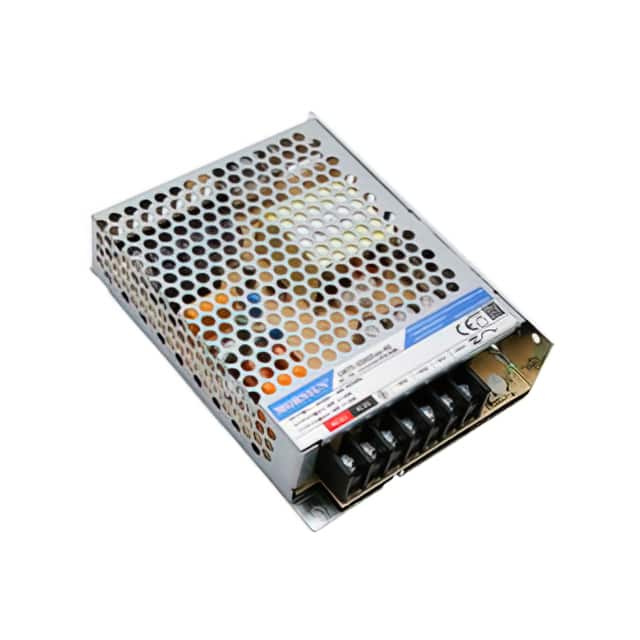

The Morning Star Industrial LM75-10A0512-40 is an enclosed AC DC converter designed for household appliances and ITE commercial applications. It provides a 12V output with a current rating of 4A, delivering a total power of 68W.
This converter features adjustable output and universal input, making it versatile for various power needs. It is designed for chassis mounting and operates within a temperature range of -30°C to 70°C with derating. The unit meets standards such as 60335-1 and 62368-1 and is approved by CE, EN, and UKCA agencies.
With dimensions of 129.0mm x 97.0mm x 46.0mm, the LM75-10A0512-40 offers a compact solution for power conversion needs. Its efficiency is rated at 80%, contributing to reliable performance in demanding environments.
-30°C to 70°C with derating.
2 outputs.
12V DC.
68W.
80% efficiency.
CE, EN, UKCA.
129mm x 97mm x 46mm (L x W x H).
