| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

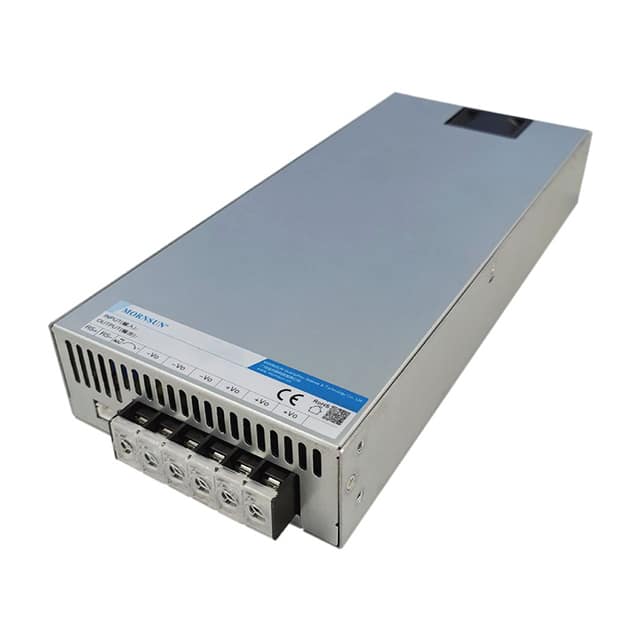

The MORNSUN LM600-12B36 is an enclosed AC-DC power module designed for ITE (Commercial) applications. It features adjustable output and remote sense capabilities, providing flexibility in system design.
This module operates with an input voltage range of 176 to 264 VAC or 240 to 373 VDC, delivering a stable 36V output voltage at 16.6A, for a total power output of 598W. It boasts an efficiency of 87% and an isolation voltage of 3 kV.
The LM600-12B36 is designed for chassis mounting and has dimensions of 267.3mm x 106.0mm x 40.0mm. It operates within a temperature range of -30°C to 60°C with derating. The product is CE approved and complies with the 62368-1 standard.
The output voltage is 36V.
The maximum output current is 16.6A.
The power rating is 598W.
The input voltage range is 176 to 264 VAC or 240 to 373 VDC.
The operating temperature range is -30°C to 60°C with derating.
The LM600-12B36 is designed for chassis mount.
The dimensions are 267.3mm x 106.0mm x 40.0mm.
