| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,458 pcs
|
1458 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | 910 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Package Quantity | |
| Propagation Delay | |
| Storage Temperature | |
| Tape & Reel |
The Texas Instruments LM5112Q1SD/NOPB is a single-channel gate driver designed for driving MOSFETs. It provides a 7-A sink and 3-A source current capability, enabling efficient power switching.
Key electrical features include a 4-V undervoltage lockout (UVLO) protection and fast propagation times of 25 ns typical. The device also exhibits fast rise and fall times of 14 ns or 12 ns with a 2-nF load, facilitating rapid switching transitions.

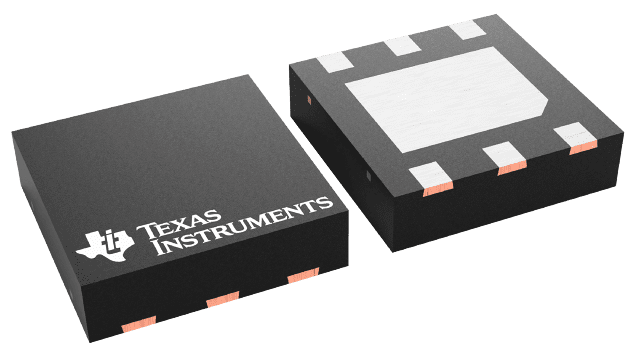

This gate driver is housed in a compact 6-pin WSON package, measuring 3 mm x 3 mm, suitable for space-constrained applications. It is qualified for automotive applications and manufactured on an automotive-grade flow, ensuring reliability for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM5112Q1SD/NOPB provides a 7-A sink current and a 3-A source current.
The typical propagation delay for the LM5112Q1SD/NOPB is 25 ns.
The LM5112Q1SD/NOPB has an undervoltage lockout threshold of 4 V.
The LM5112Q1SD/NOPB is available in a 6-pin WSON (NGG) package.
Yes, the LM5112Q1SD/NOPB is qualified for automotive applications and is AEC-Q100 Grade 1 Qualified.
