Mfr Part #:

LM5036RJBR

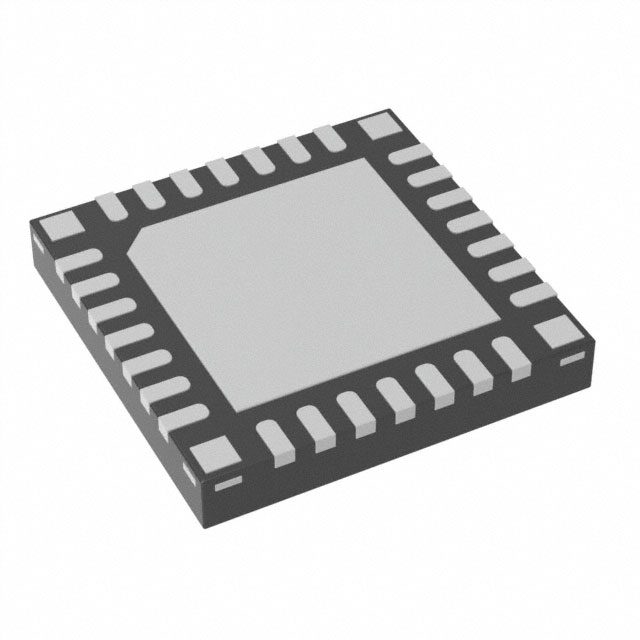

Name: LM5036RJBR
Brand: Texas Instruments
SKU: LM5036RJBR

Mfr Name: Texas Instruments

Description:

HALF BRIDGE CONTROLLER W/INTEGRA

Stock on Request

LM5036RJBR Description

Short technical summary and product information.

HALF BRIDGE CONTROLLER W/INTEGRA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

LM5036RJBT

Texas Instruments

HALF-BRIDGE PWM CONTROLLER WITH

Category	DC DC Switching Controllers
Manufacturer Name	Texas Instruments
Clock Sync	Yes
Control Features	Current Limit, Frequency Control, Ramp
Duty Cycle (Max)	50%
Frequency	2MHz
Function	Step-Up/Step-Down
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature	-40°C ~ 125°C (TJ)
Output Configuration	Positive, Isolation Capable
Output Phases	2
Output Type	PWM
Supplier Device Package	28-WQFN (5x5)
Synchronous Rectifier	Yes
Topology	Half-Bridge
Voltage	7.5V ~ 8.1V
