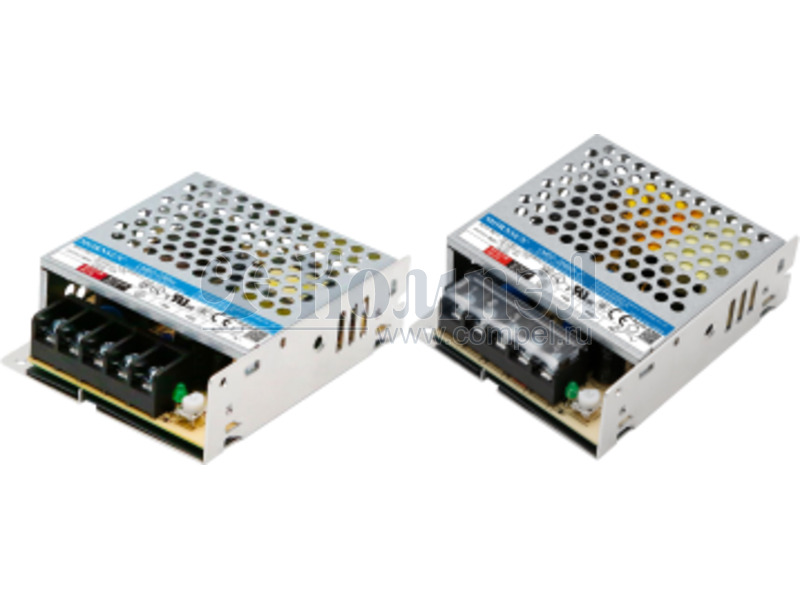

The Mornsun LM50-23B48R2 is a 50W enclosed AC/DC switching power supply designed for reliable operation in various applications. It features a universal input voltage range of 85-305VAC and can also accept DC input. The converter provides a stable 48V output with a current rating of 1.1A.
Key electrical specifications include a typical efficiency of 90.5% at 230VAC and high input-to-output isolation of 4000VAC. The operating temperature range is -40°C to 85°C with derating, making it suitable for demanding environments. Protection features include over-voltage, over-current, and short-circuit protection.
Mechanically, the LM50-23B48R2 is designed for chassis mounting and has dimensions of 99.0mm x 65.0mm x 30.0mm. It complies with safety standards such as IEC/EN60335-1 and IEC/EN62368-1. This power supply is suitable for applications in household appliances and ITE (Commercial) equipment.
85-305 VAC or 120-430 VDC.
48V DC at 1.1A, 50W.
90.5% at 230VAC.
-40°C to 85°C with derating.
Chassis mount.
4000 VAC input to output.
