| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

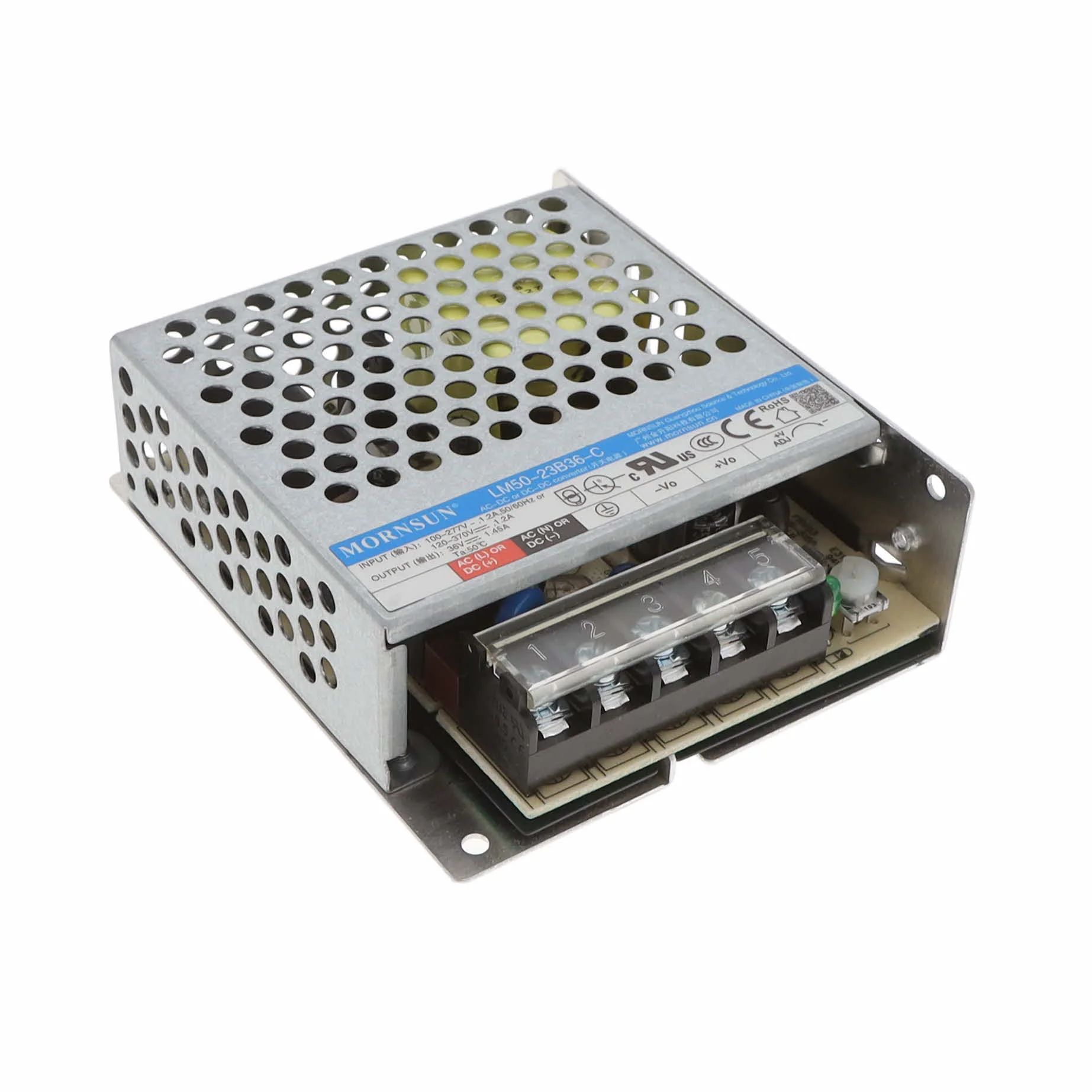

This AC/DC converter from Mornsun America, LLC, part number LM50-23B36-C, is an enclosed unit designed for chassis mounting. It provides a single 36V output with a maximum current of 1.45A, delivering a total power of 52W. The converter operates with an efficiency of 89% and features a universal input voltage range of 85-305 VAC or 120-430 VDC.
With an isolation voltage of 4kV, this unit is suitable for applications requiring robust electrical isolation. It is designed to operate within a temperature range of -30°C to 70°C with derating. The dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height.
Compliance is indicated by approvals from CCC, CE, cURus, and UL, and it meets standards such as 60335-1 and 62368-1. The RoHS status is listed as RoHS3 Compliant, MSL is 1, and REACH status is Unaffected. Its applications include Household Appliances and ITE (Commercial) equipment.
85-305 VAC and 120-430 VDC.
36V at 1.45A.
52W.
89%.
-30°C to 70°C with derating.
Enclosed, chassis mount.
99.0 x 82.0 x 30.0 mm.
