| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

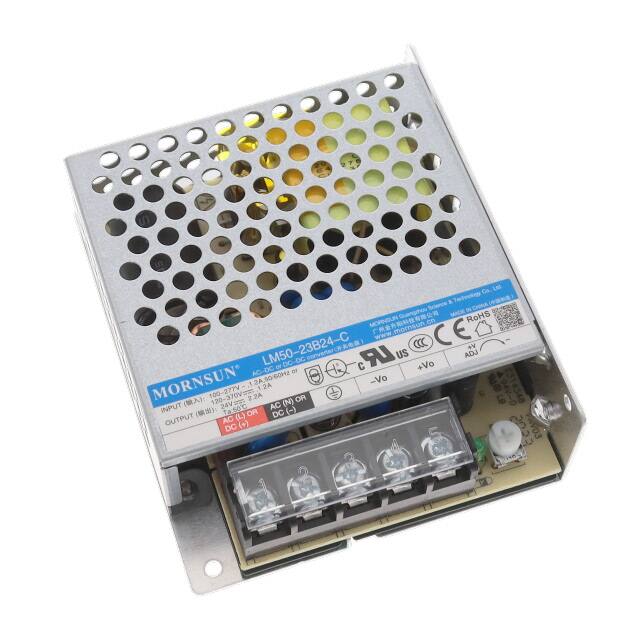

The LM50-23B24-C from Morning Star Industrial is a 53W enclosed AC DC converter with a single 24V output rated at 2.2A. It accepts universal AC input and is also DC input capable, making it flexible for various power architectures. The module achieves 88% typical efficiency and provides 4kV isolation voltage for safety.
Designed for chassis mount installation, the converter measures 99.0mm x 82.0mm x 30.0mm. It operates over a -30°C to +70°C range with derating, and is approved to CCC, CE, cURus, and UL standards under 60335-1 and 62368-1. The adjustable output allows fine-tuning the voltage within a specified range.
Applications include household appliances and ITE (commercial) equipment. RoHS3 compliance is indicated. With its compact metal enclosure and high isolation, the LM50-23B24-C suits designs requiring reliable isolated power in a low-profile chassis-mount package.
The output is 24V DC at 2.2A, providing 53W of power.
The converter operates from -30°C to +70°C with derating.
It is approved to CCC, CE, cURus, and UL standards (60335-1; 62368-1).
The isolation voltage is 4 kV.
It is designed for chassis mount installation.
