| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

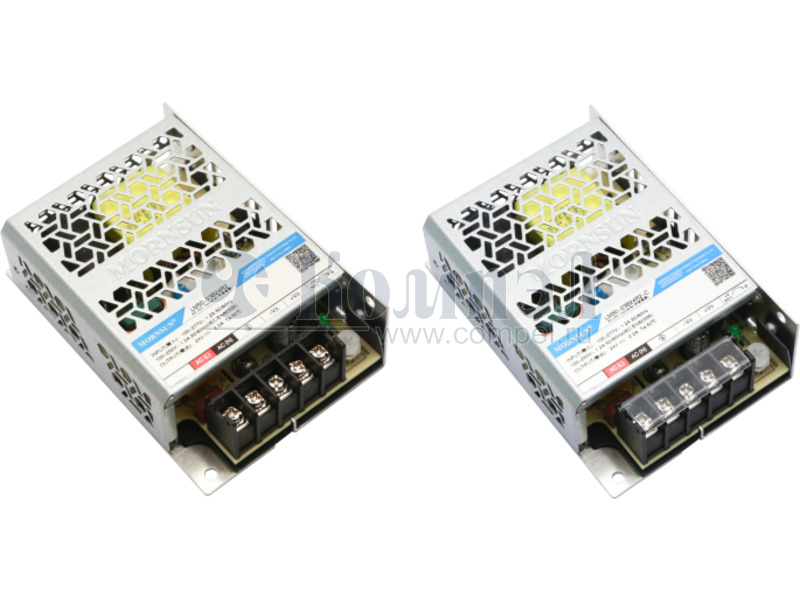

The Mornsun LM50-23B15R2 is an enclosed AC/DC switching power supply with a 51W output power rating. It provides a single 15V output at 3.4A.
This converter accepts a universal input voltage range of 80-305VAC or 100-430VDC, making it versatile for various power sources. It operates efficiently with an 88% efficiency rating at 230VAC.
The LM50-23B15R2 is designed for demanding environments, featuring an operating temperature range of -40°C to +85°C. It offers high I/O isolation up to 4000VAC and includes protection against short circuit, over-current, and over-voltage conditions.
With dimensions of 99.0mm x 65.0mm x 30.0mm, this power supply is suitable for chassis mounting. Its applications include household appliances and ITE (Commercial) equipment, meeting standards such as IEC/EN60335-1 and IEC/EN62368-1.
15V.
80-305VAC or 100-430VDC.
88%.
4000VAC.
-40°C to 85°C with derating.
Chassis Mount.
Household Appliances and ITE (Commercial).
