| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

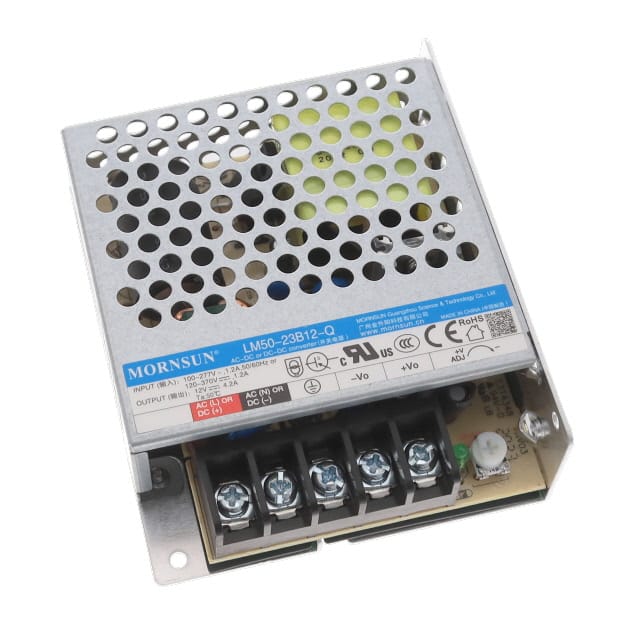

The Mornsun LM50-23B12-Q is an enclosed AC/DC switching power supply designed for reliable power conversion. It offers a universal input voltage range of 85-305VAC and can also accept DC input.
Key electrical specifications include a nominal output voltage of 12V and a maximum output current of 4.2A, delivering up to 50W of power. The efficiency is rated at 86% at 230VAC. This series provides high I/O isolation up to 4000VAC and features protections against short circuit, over-current, and over-voltage.
Designed for demanding environments, the LM50-23B12-Q operates within an ambient temperature range of -30°C to +70°C. Its compact dimensions of 99.0mm x 82.0mm x 30.0mm make it suitable for various applications. The unit is chassis mounted and has a conformal coated enclosure.
This power supply meets safety standards including IEC/EN/UL62368-1 and EN60335-1, making it suitable for applications in household appliances and ITE (Commercial) equipment.
The input voltage range is 85-305 VAC or 120-430 VDC.
The nominal output is 12V at 4.2A, adjustable from 10.2V to 13.8V.
The operating temperature range is -30°C to 70°C with derating.
The converter is chassis mount, enclosed, and conformal coated.
Typical efficiency is 86% at 230VAC input.
It complies with IEC 60335-1 and IEC 62368-1.
Dimensions are 99.0 x 82.0 x 30.0 mm (3.90 x 3.23 x 1.18 inches).
