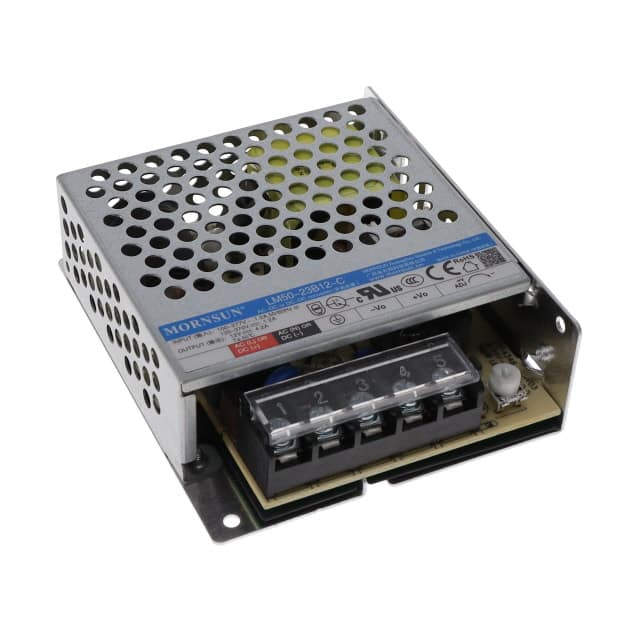

The Morning Star Industrial LM50-23B12-C is a 50W AC/DC power converter designed for enclosed applications. It offers a 12V output with a current rating of 4.2A and operates within a wide temperature range of -30°C to 70°C.
Key features include adjustable output, DC input capability, and universal input voltage compatibility. The converter is designed for chassis mounting and meets safety standards such as CCC, CE, cURus, and UL. Its dimensions are 99.0mm x 82.0mm x 30.0mm.
This AC/DC converter is suitable for various applications, including household appliances and ITE (Commercial) equipment. It boasts an efficiency of 86% and provides 4kV of isolation voltage. The product is RoHS3 Compliant.
The output voltage is 12V DC.
The converter is rated at 50W.
The output current is 4.2A.
The operating temperature range is -30°C to 70°C with derating.
The isolation voltage is 4 kV.
The efficiency is 86%.
It holds CCC, CE, cURus, and UL approvals.
