| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

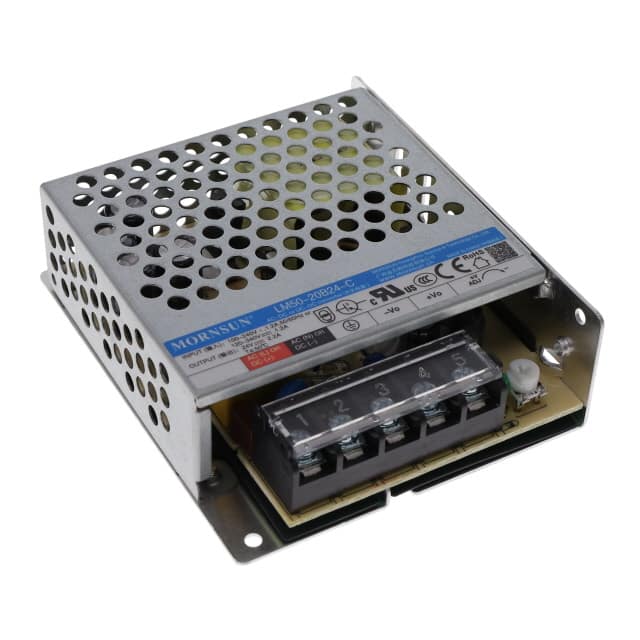

The LM50-20B24-C from Mornsun America, LLC is an enclosed AC/DC converter designed for reliable power conversion. It delivers a stable 24V output with a maximum power of 53W and an efficiency of 89%.
This converter features a universal input voltage range of 85-264 VAC and 120-370 VDC, making it suitable for various global applications. Its design includes adjustable output, DC input capability, and chassis mount for easy integration into systems.
Key specifications include an operating temperature range of -30°C to 70°C with derating, and an isolation voltage of 4 kV. It is approved by major agencies including CB, CCC, CE, cURus, and UL, ensuring compliance with safety standards like 60335-1 and 62368-1.
Applications for the LM50-20B24-C include household appliances and ITE (Commercial) equipment, where a robust and efficient power supply is required. The compact dimensions of 99.0mm x 82.0mm x 30.0mm facilitate installation in space-constrained environments.
85 to 264 VAC and 120 to 370 VDC.
24V at 2.2A.
-30°C to 70°C with derating.
99.0mm x 82.0mm x 30.0mm.
89%.
CB, CCC, CE, cURus, UL.
4 kV.
