| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

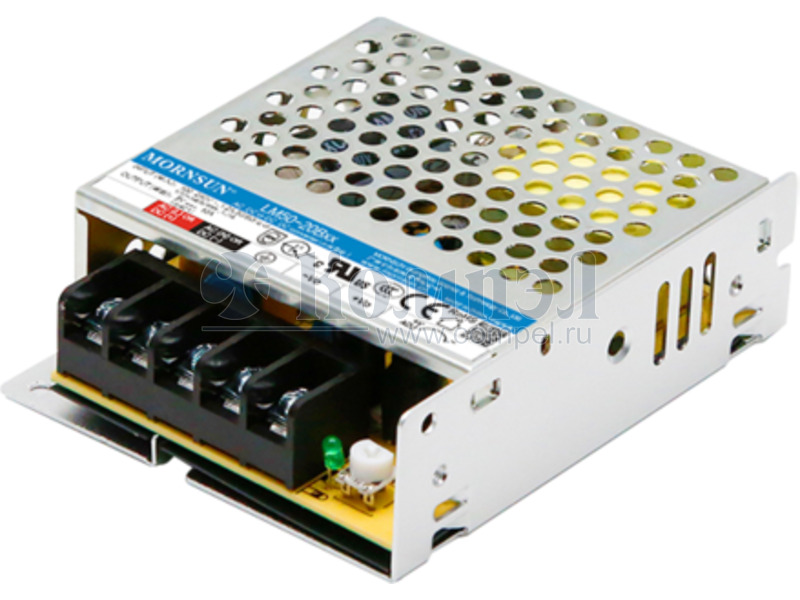

The Mornsun LM50-20B05-C is a 50W enclosed AC/DC switching power supply designed for reliable power conversion. It accepts a universal input voltage range of 85 to 264VAC or 120 to 370VDC, making it suitable for global applications.
This power supply delivers a nominal output voltage of 5V and a maximum output current of 10A, providing a total output power of 50W. It boasts an efficiency of 86% at 230VAC and operates within an ambient temperature range of -30°C to +70°C. The unit features high I/O isolation up to 4000VAC and includes protections against short circuit, over-current, and over-voltage.
Designed for easy integration, the LM50-20B05-C utilizes chassis mounting. Its compact dimensions of 99.0mm x 82.0mm x 30.0mm allow for flexible installation in various systems. The power supply meets key safety and EMC standards, including UL62368-1 and EN62368-1, making it suitable for industrial, commercial, and household appliance applications.
The nominal output voltage is 5V.
The maximum output current is 10A.
The output power is 50W.
It accepts a universal input voltage range of 85 to 264VAC or 120 to 370VDC.
The operating ambient temperature range is -30°C to 70°C.
The dimensions are 99.0mm x 82.0mm x 30.0mm.
It complies with standards such as CB, CCC, CE, cURus, and UL, including 60335-1 and 62368-1.
