| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

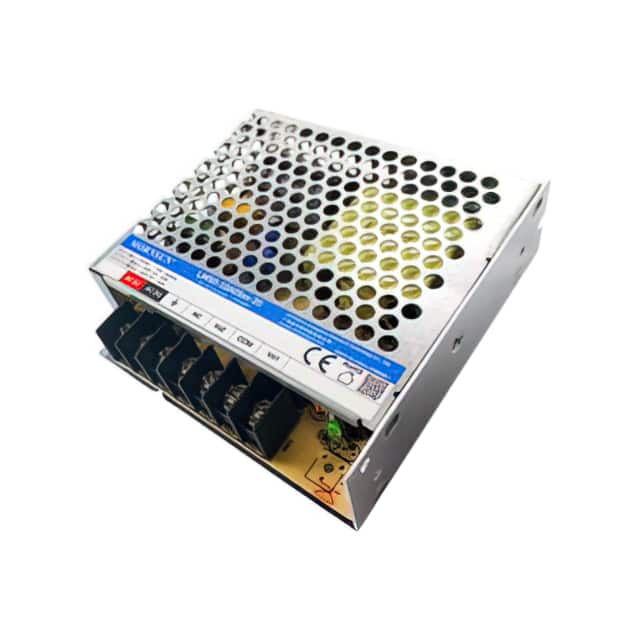

The MORNSUN LM50-10A0512-20 is an enclosed AC-DC power module designed for various applications, including household appliances and ITE (Commercial) equipment. It offers a universal input voltage range of 85-264 VAC or 120-370 VDC, providing flexibility in power sourcing.
This module delivers dual outputs: 5V at 6A and 12V at 2A, with a total power output of 54W. Key electrical specifications include an efficiency of 79% and an isolation voltage of 3 kV. The operating temperature range is -30°C to 70°C, with derating applied.
Mechanically, the LM50-10A0512-20 is designed for chassis mounting and has dimensions of 99.0mm x 97.0mm x 30.0mm. It features adjustable output and universal input capabilities, making it suitable for a wide range of design requirements. The module is certified by CE and EN approval agencies.
85 ~ 264 VAC or 120 ~ 370 VDC.
Chassis mount, dimensions 99.0mm x 97.0mm x 30.0mm (3.90" x 3.82" x 1.18").
-30°C to 70°C with derating.
Two outputs: 5V at 6A and 12V at 2A.
54 watts.
3 kV.
60335-1 (household appliances) and 62368-1 (ITE equipment).
