| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,416 pcs
|
2416 pcs | On Request | 1 | On Request | On Request | 0821+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplifier Type | |
| Board Type | |
| Max Output Power x Channels @ Load | |
| Output Type | |
| Storage Temperature | |
| Supplied Contents | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

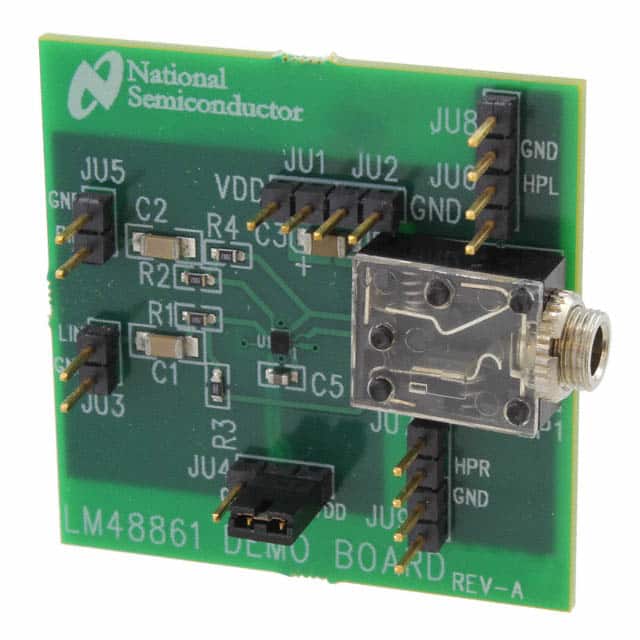

This evaluation board, the LM48861TMBD from Texas Instruments, is designed to facilitate the testing and development of audio amplifier applications utilizing the LM48861 integrated circuit.
The board provides a fully populated platform for evaluating the LM48861's performance. Key electrical specifications include a Class AB amplifier type, capable of delivering 24mW per channel into a 16 Ohm load. The operating voltage range is from 1.2V to 2.8V, making it suitable for various portable and low-power designs.
Connectivity is provided for Headphones and 2-Channel (Stereo) output. The board is supplied as a single unit, ready for immediate integration into a development workflow. The utilized IC is the LM48861, allowing engineers to directly assess its capabilities in a practical setup.
Environmental compliance information indicates RoHS3 compliance, an MSL of 1 Unlimited, and REACH Unaffected status. This evaluation board serves as a valuable tool for engineers working with audio amplification circuits, enabling efficient prototyping and performance verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM48861TMBD evaluation board is a Class AB amplifier.
The LM48861TMBD evaluation board provides a maximum output power of 24mW per channel into a 16 Ohm load.
The operating voltage range for the LM48861TMBD evaluation board is from 1.2V to 2.8V.
The LM48861TMBD evaluation board is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the LM48861TMBD evaluation board is 1 Unlimited.
