| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Lead Style | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel |
The Texas Instruments LM4860MX is a bridge-connected, mono Class-AB audio power amplifier designed for high-quality output in portable systems. It can deliver 1W of continuous average power into an 8Ω load with less than 1% THD+N across the audio spectrum, operating from a 5V power supply.
This amplifier is optimized for minimal external components, eliminating the need for output coupling capacitors, bootstrap capacitors, or snubber networks. It features a shutdown mode for low-power consumption and thermal shutdown protection circuitry. The LM4860MX is housed in a small outline (SO) package, making it suitable for space-constrained applications.
Key specifications include a maximum THD+N of 1% at 1W into 8Ω, instantaneous peak output power greater than 2W, and a typical shutdown current of 0.6 μA. The operating temperature range is -20°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.86 | $0.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LM4860MX can deliver 1W of continuous average power into an 8Ω load with less than 1% THD+N.
The operating temperature range for the LM4860MX is -20°C to 85°C.

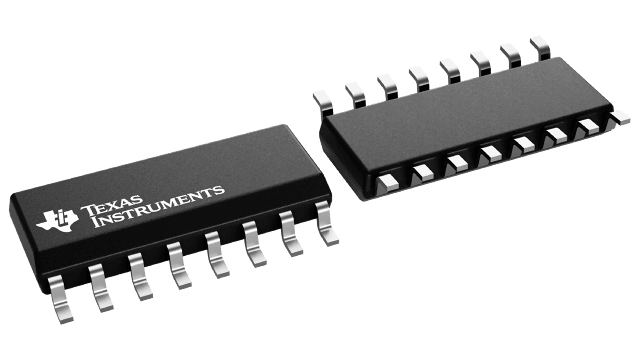

The LM4860MX is available in a SOIC (D) package with 16 pins.
The LM4860MX is RoHS3 Compliant.
The MSL for the LM4860MX is Level 1.
