| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
485 pcs
|
485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
230 pcs
|
230 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Interface | |
| Input Type | |
| Lead Style | |
| Load | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Power | |
| PSRR | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature |

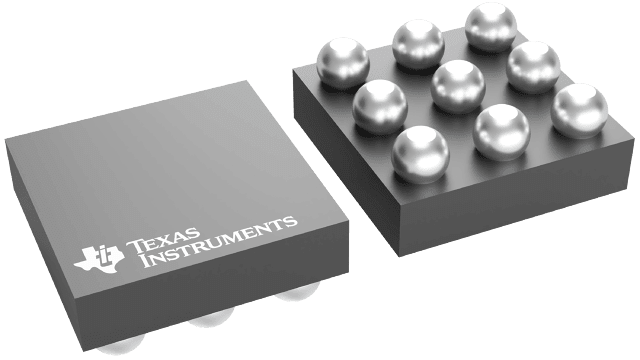

The LM4675TL/NOPB from Texas Instruments is a single-supply, high-efficiency Class-D audio amplifier designed for mono applications. It delivers up to 2.7W of output power into a 4Ω load.
This amplifier utilizes a spread spectrum, filterless PWM architecture that significantly reduces EMI, eliminating the need for output filters when driving inductive loads. Key electrical specifications include a wide analog supply voltage range of 2.4V to 5.5V and a low THD + N of 0.03% at 1kHz.
Designed for minimal external components, the LM4675TL/NOPB offers externally configurable gain, a very fast turn-on time of 17μs, and "click and pop" suppression circuitry. It also features a micro-power shutdown mode for power conservation.
The device is available in space-saving WSON and DSBGA packages, making it suitable for compact designs. Its operating temperature range is -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 to 85 °C.
WSON (NGQ) and DSBGA (YZR) surface mount packages.
2.7 W maximum into a 4 Ω load.
Power stage and analog supply voltage range is 2.4 V to 5.5 V.
Up to 89% typical at 5 V, 1 W into 8 Ω speaker.
0.03% at 1 kHz.
0.01 µA typical.
