| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

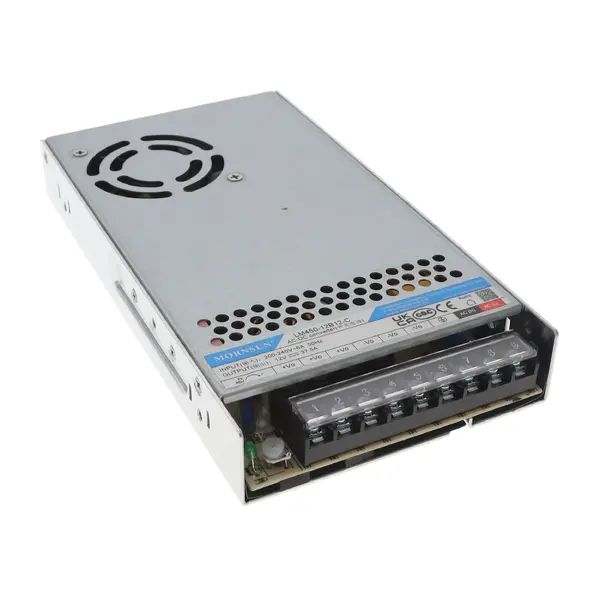

The Morning Star Industrial LM450-12B12-C is an enclosed AC/DC converter designed for commercial ITE applications. It delivers a 12V output with a maximum current of 37.5A, providing a total power of 450W.
This converter operates with a universal input voltage range of 176 to 264 VAC and boasts an efficiency of 85%. Key features include a 3 kV isolation voltage and a wide operating temperature range of -30°C to 70°C with derating.
Designed for easy integration, the LM450-12B12-C features a chassis mount type. Its dimensions are 215.0mm in length, 115.0mm in width, and 30.0mm in height. The unit is compliant with CE standards and adheres to the 62368-1 safety standard.
176 to 264 VAC, also 240 to 373 VDC.
Enclosed chassis mount, 215.0mm x 115.0mm x 30.0mm.
-30°C to 70°C with derating.
12V.
37.5A.
3kV.
85%.
