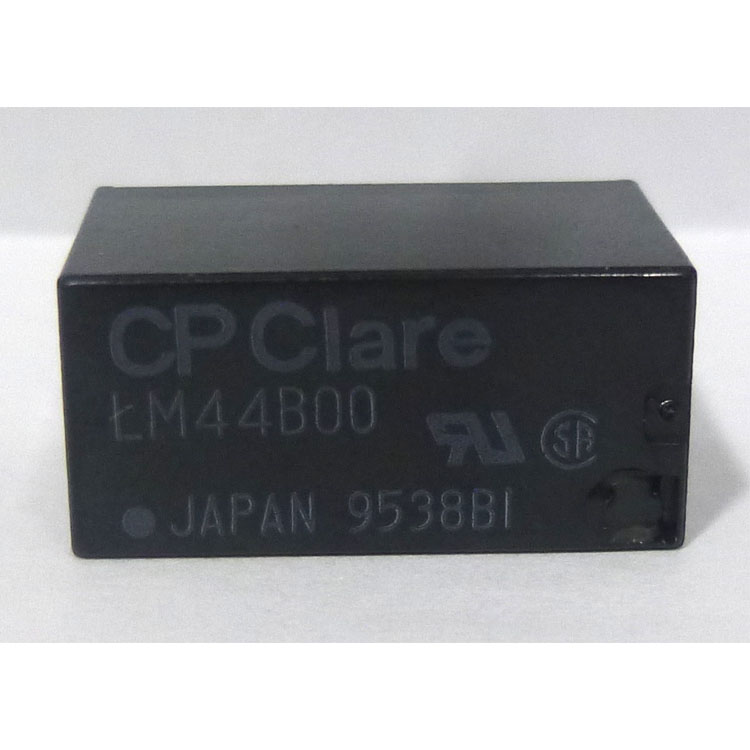

LM44B00 The CP Clare LM44B00 is a DPDT reed relay designed for reliable low-power switching. It features a 5V coil and a 2 Amp contact rating.
Mfr Part #:

LM44B00

Available from 1 distributors
Mfr Name: IXYS
IXYS
The CP Clare LM44B00 is a DPDT reed relay designed for reliable low-power switching. It features a 5V coil and a 2 Amp contact rating.
✓ Total Stock: 386 pcs
$ Price Range: $0.99

LM44B00 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
386 pcs
On Request
386 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LM44B00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Voltage
Contact Material
Insulation Resistance
Operating Temperature
SVHC Present
View Similar Products (0)

LM44B00 Description

Short technical summary and product information.

The CP Clare LM44B00 is a DPDT reed relay from the LM series, offering reliable low-power switching for telecom and general-purpose loads. This relay operates with a 5V coil and is rated for switching up to 2 Amps. Its bifurcated contacts are constructed from a silver alloy with a gold cap, enabling the switching of loads ranging from microamps to 2 Amps.



The relay is sealed and FCC Part 68 compatible, withstanding 1500V. It has a wide switching range and low coil power consumption. The operating temperature range for this component is from -40°C to +85°C. The coil resistance is typically 167 Ohms at 25°C.



This component is suitable for applications requiring dependable and precise switching capabilities. Its robust construction and specific contact material make it a versatile choice for various electronic designs.

LM44B00 Quick Information

Product Type: Reed Relay
Series: LM series
Canonical Name: CP Clare LM44B00 DPDT Reed Relay
Subcategory: Reed Relay

LM44B00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LM44B00 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

LM44B00 Features

  • DPDT bifurcated contacts with gold cap.
  • Rated for 2 Amps UL/CSA.
  • Operates on a 5V coil.
  • Sealed construction for protection.
  • Wide switching range.

LM44B00 Applications

  • Use in industrial control circuits.
  • Suitable for low-signal switching applications.
  • Ideal for temperature-cycling environments.
  • Works in automated test equipment.

LM44B00 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the LM44B00 reed relay?

The coil voltage for the LM44B00 reed relay is 5V.

What is the contact rating of the LM44B00 relay?

The LM44B00 relay has a contact rating of 2 Amps.

What is the operating temperature range for the LM44B00?

The operating temperature range for the LM44B00 is -40°C to +85°C.

What material are the contacts made of?

The contacts are made of a silver alloy with a gold cap.

What is the typical coil resistance at 25°C?

The typical coil resistance at 25°C is 167 Ohms.
