| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27,815 pcs
|
27815 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
17,374 pcs
|
17374 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
8,890 pcs
|
8890 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Duty Cycle | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Operating Temperature | |
| Output Current | |
| Quiescent Current | |
| Storage Temperature | |
| Tape & Reel | |
| Topology |
The Texas Instruments LM43603PWPR is a high-performance synchronous step-down (buck) voltage converter designed for a wide input voltage range of 3.5V to 36V. It can deliver a maximum output current of 3A.
Key electrical specifications include a low quiescent current of 27 µA, enabling high efficiency at light loads. The output voltage can be adjusted from 1V to 28V. The device features an adjustable switching frequency ranging from 200 kHz to 2.2 MHz, with a default of 500 kHz, and supports frequency synchronization to an external clock.
This converter offers several integrated features for robust operation, including overcurrent protection, power-good flag, soft start, and thermal shutdown protection. It is designed to be stable with various capacitor types and meets EN55022/CISPR 22 EMI standards.

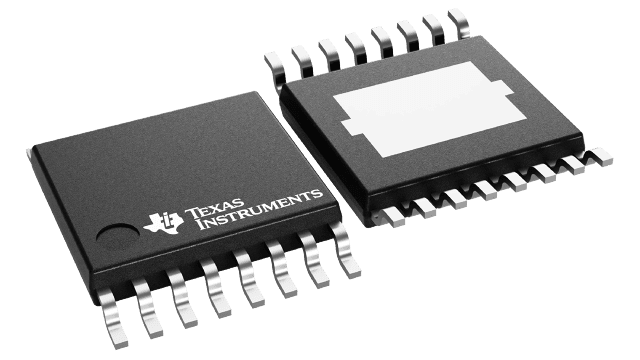

The LM43603PWPR is available in HTSSOP (PWP) 16 and VSON (DSU) 16 packages, measuring 32 mm² (5 mm × 6.4 mm) and 20 mm² (5 mm × 4 mm) respectively. The operating temperature range is -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.97 | $1.97 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.5V to 36V.
The maximum output current is 3A.
The typical quiescent current is 27 µA.
The operating temperature range is -40°C to 125°C.
The adjustable frequency range is 200 kHz to 2.2 MHz.
It is available in HTSSOP (PWP) 16 and VSON (DSU) 16 packages.
