| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
401,778 pcs
|
401778 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Reference Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance |

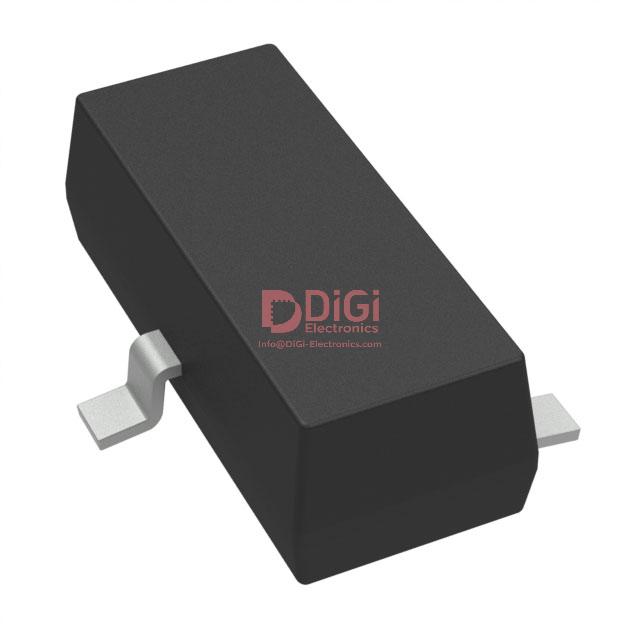

The Texas Instruments LM4040C10IDBZR is a Shunt Voltage Reference IC designed for precision voltage regulation. It features a fixed output voltage of 10V with a tight tolerance of ±0.5%, ensuring stable performance in demanding applications.
This device is capable of sourcing or sinking up to 15 mA of current, making it suitable for a variety of power management circuits. The operating temperature range is -40°C to 85°C, providing reliability in diverse environmental conditions. The LM4040C10IDBZR is available in a compact SOT-23-3 surface-mount package, facilitating integration into space-constrained designs.
Key electrical characteristics include a temperature coefficient of 100ppm/°C and low noise performance, with 180µVrms from 10 Hz to 10 kHz. The cathode current is rated at 125 µA. Its shunt reference architecture makes it a versatile component for applications requiring a stable voltage reference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is fixed at 10V.
It is available in a surface-mount SOT-23-3 package (also designated as TO-236-3 or SC-59).
The operating temperature range is -40°C to 85°C.
The initial tolerance is ±0.5%.
The temperature coefficient is 100ppm/°C.
The noise is 180µVrms from 10Hz to 10kHz.
The output current is 15 mA.
