| Category | |
| Manufacturer Name | |
| Current | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The LM393NG by On Semiconductor is a dual, independent precision voltage comparator designed for single or split supply operation. It supports a wide single-supply range from 2.0 Vdc to 36 Vdc and a split-supply range of ±1.0 Vdc to ±18 Vdc.
This comparator features very low current drain independent of supply voltage, drawing only 0.4 mA. It boasts low input bias current of 25 nA and low input offset current of 5.0 nA. The input offset voltage is a maximum of 5.0 mV. The input common mode range extends to the ground level, and the differential input voltage range equals the power supply voltage.

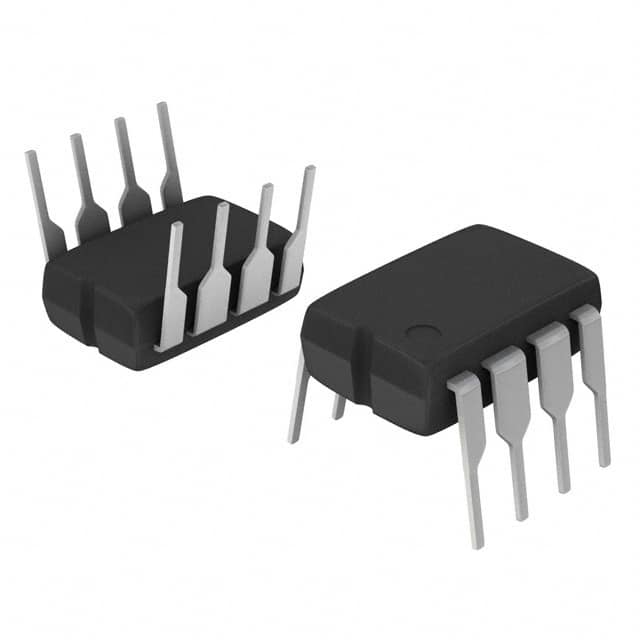

Designed for general-purpose applications, the LM393NG's output voltage is compatible with DTL, ECL, TTL, MOS, and CMOS logic levels. It is housed in an 8-PDIP package and supports through-hole mounting. The operating temperature range is 0°C to 70°C.
Key features include its dual independent comparators, wide supply voltage capability, and low power consumption, making it suitable for consumer, automotive, and industrial electronics.
The LM393NG operates with a wide single-supply range from 2.0 Vdc to 36 Vdc and a split-supply range of ±1.0 Vdc to ±18 Vdc.
The operating temperature range for the LM393NG is 0°C to 70°C.
The LM393NG is available in an 8-PDIP package.
The RoHS status is RoHS3 Compliant.
