Mfr Part #:

LM393AD

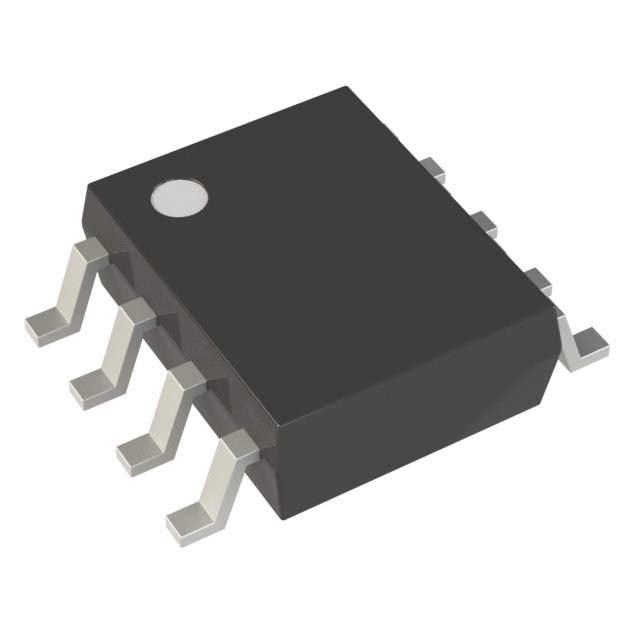

The LM393AD from STMicroelectronics is a dual voltage comparator IC. It operates over a wide supply voltage range and features low power consumption.

✓ Total Stock: 8,232 pcs

$ Price Range: $2.21

LM393AD Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	8,232 pcs On Request	8232 pcs	On Request	1	On Request	On Request	03+	On Request	On Request

LM393AD Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Phihong USA
Operating Temperature	0°C / 70°C
Output Current	18mA
Response Time	1.3us
Storage Temperature	°C ~ °C
Tape & Reel	No

View Similar Products (0)

LM393AD Description

Short technical summary and product information.

The LM393AD is a dual voltage comparator IC manufactured by STMicroelectronics. It is designed for applications requiring precise voltage level detection. This component features a wide single supply voltage range from 2V to 36V, or dual supplies from ±1V to ±18V. Its very low supply current is independent of the supply voltage, consuming only 0.4mA. The input common-mode voltage range includes ground, making it versatile for various circuit designs.

The LM393AD offers a low input bias current of 25nA typical and a low input offset current of ±5nA typical. The input offset voltage is typically ±1mV. It provides a low output saturation voltage of 250mV typical at 4mA. The differential input voltage range is equal to the supply voltage. Outputs are compatible with TTL, DTL, ECL, MOS, and CMOS logic levels.

This comparator is available in a surface-mount SOIC package, suitable for automated assembly processes. The operating temperature range for the LM393AD is 0°C to 70°C, with a maximum power dissipation of 830mW in an SOIC package. Its design makes it suitable for a wide array of electronic applications where reliable voltage comparison is needed.

LM393AD Quick Information

Product Type: Dual Voltage Comparator

Series: LM393

Canonical Name: LM393AD Dual Voltage Comparator

Subcategory: Dual Voltage Comparator

LM393AD Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

LM393AD Estimated Pricing

Qty	Low	High
1+	$2.21	$2.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

LM393AD Features

Dual voltage comparator IC.
Wide supply voltage range: 2V to 36V.
Very low supply current: 0.4mA.
Input common-mode range includes ground.
SOIC package for surface mounting.

LM393AD Applications

Voltage level detection circuits.
General purpose comparison tasks.
Low power electronic systems.
Battery operated devices.

LM393AD FAQs

6 frequently asked questions generated from this part’s specifications.

What is the operating supply voltage range for the LM393AD?

The LM393AD operates with a single supply voltage from 2V to 36V, or with dual supplies from ±1V to ±18V.

What is the typical supply current of the LM393AD?

The typical supply current for the LM393AD is 0.4mA, independent of the supply voltage.

What is the input common-mode voltage range for the LM393AD?

The input common-mode voltage range for the LM393AD includes ground, from 0V up to VCC.

What is the typical output saturation voltage of the LM393AD?

The typical output saturation voltage for the LM393AD is 250mV when the output current is 4mA.

What is the operating temperature range for the LM393AD?

The LM393AD has an operating temperature range of 0°C to 70°C.

What package is the LM393AD available in?

The LM393AD is available in an SOIC package.
