| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 1002P/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Output Current | |
| Package / Case | |
| SVHC Present |

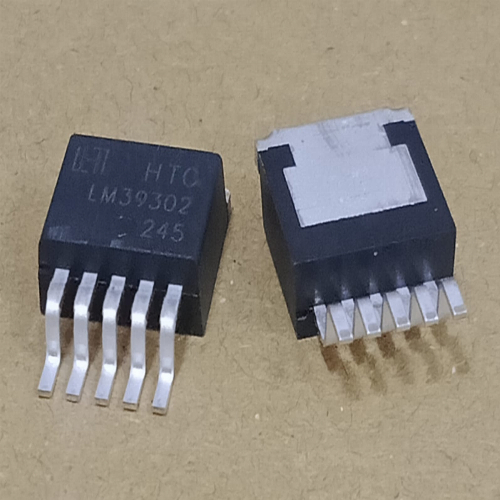

The LM39302R-ADJ is a 3.0A high-voltage Very Low Dropout (VLDO) linear voltage regulator manufactured by HTC. It is designed to provide a low voltage, high-current output with minimal external components. This regulator features a guaranteed minimum output current of 3A and a typical dropout voltage of 500mV at 3A, making it suitable for applications requiring efficient voltage conversion.
Key electrical specifications include 1% initial accuracy and low ground current. The device is protected against current limiting and thermal shutdown, and also offers reversed-battery and reversed-leakage protection. It requires only 47µF of output capacitance for stability and fast transient response, ideal for heavy switching applications.
The LM39302R-ADJ is available in TO-263 and TO-220 packages, suitable for through-hole mounting. Its adjustable version designation (R-ADJ) indicates its flexibility in setting output voltages, ideal for PC add-in cards converting standard 5V or 3.3V down to lower core voltages.
The LM39302R-ADJ has a minimum guaranteed output current of 3A.
The typical dropout voltage for the LM39302R-ADJ at 3A is 500mV.
The LM39302R-ADJ has an initial accuracy of 1%.
The LM39302R-ADJ is available in TO-263 and TO-220 packaging.
The Moisture Sensitivity Level (MSL) for the LM39302R-ADJ is Level 3.
