LM350-22B48R2
Morning Star Industrial

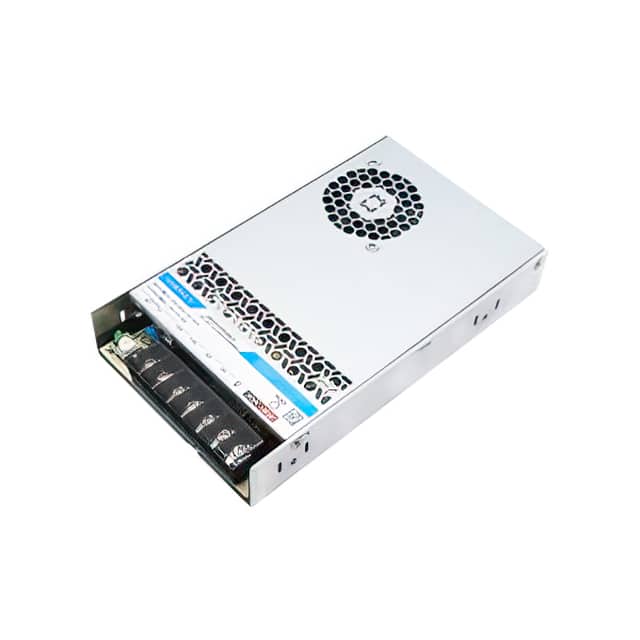

The Morning Star Industrial LM350-22B48R2 is an enclosed AC DC converter with a 48V output, delivering 350W of power at 7.3A. It features a chassis mount design.
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |
The Morning Star Industrial LM350-22B48R2-C is an enclosed AC DC converter designed for various applications, including household appliances and ITE commercial use. It boasts a power output of 350W and a current rating of 7.3A, with an efficiency of 89%.
Key features include an adjustable output and DC input capability. The converter operates within a temperature range of -40°C to 85°C with derating. Its dimensions are 179.0mm in length, 106.0mm in width, and 30.0mm in height, with a mounting type suitable for chassis mounting.
This AC DC converter meets standard numbers 60335-1 and 62368-1. It has a voltage rating of 4 kV and offers a single output. The product is described as RoHS3 Compliant, with an MSL of 1 Unlimited, and REACH Unaffected.
The power rating is 350W.
It is an enclosed AC DC converter.
Key features include adjustable output and DC input capability.
The operating temperature range is -40°C to 85°C (With Derating).
The dimensions are 179.0mm in length, 106.0mm in width, and 30.0mm in height.
The current rating is 7.3 A.
It complies with standard numbers 60335-1 and 62368-1.
