| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

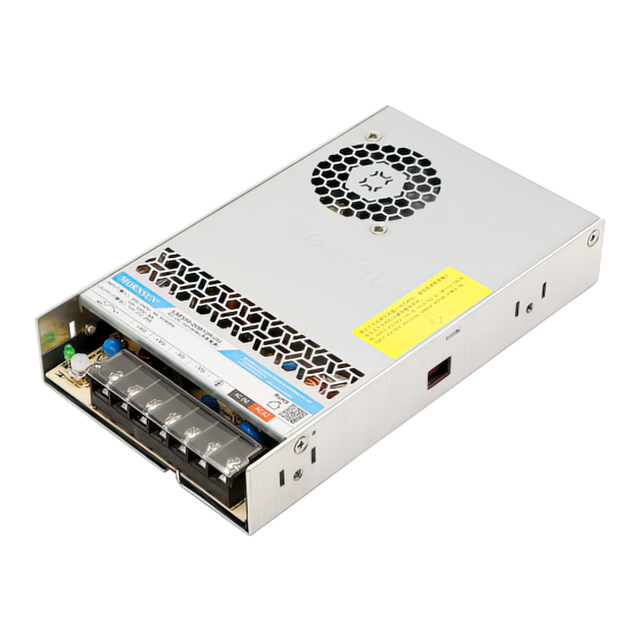

The LM350-20B54R2-CQ from Mornsun is an AC DC converter designed for external or internal use. This unit is enclosed and features conformal coating for added protection.
Key electrical specifications include a single output voltage of 54V and a maximum power output of 351W, with a current rating of 6.5A. The converter operates with an efficiency of 88.5% and accepts a wide input voltage range of 90-132 VAC, 180-264 VAC, or 240-370 VDC. It also offers DC input capability and adjustable output features.
Designed for reliability, the LM350-20B54R2-CQ has an isolation voltage of 4 kV and operates within a temperature range of -40°C to 85°C with derating. Its dimensions are 179.0mm x 106.0mm x 30.0mm.
This AC DC converter is suitable for applications in household appliances and ITE (Commercial) equipment. It is chassis mounted and complies with standard numbers 60335-1 and 62368-1.
90 to 132 VAC, 180 to 264 VAC, or 240 to 370 VDC.
54V at 6.5A.
-40°C to 85°C with derating.
Chassis Mount.
88.5%.
4 kV.
1 output.
