| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

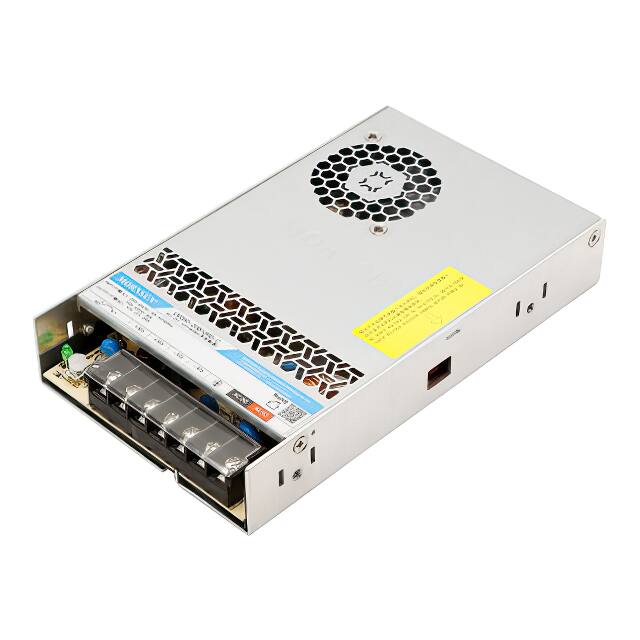

The Mornsun LM350-20B36R2-C is an enclosed AC DC converter designed for various applications, including household appliances and ITE (Commercial) equipment. It provides a single output of 36V with a current rating of 9.7A, delivering a total power of 349W.
Key electrical specifications include an input voltage range of 90-132 VAC or 180-264 VAC, and it is also capable of DC input from 240-370 VDC. The converter boasts an efficiency of 88.5% and features adjustable output and DC input capability. It offers 4 kV of isolation.
Mechanically, the unit is designed for chassis mounting and measures 179.0mm in length, 106.0mm in width, and 30.0mm in height. The operating temperature range is -40°C to 85°C, with derating. It complies with standards such as 60335-1 and 62368-1.
The output voltage is 36V DC, adjustable.
The input can be 90-132 VAC, 180-264 VAC, or 240-370 VDC.
-40°C to 85°C with derating.
349W at 36V, 9.7A.
88.5%.
4 kV.
IEC 60335-1 and 62368-1.
