| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

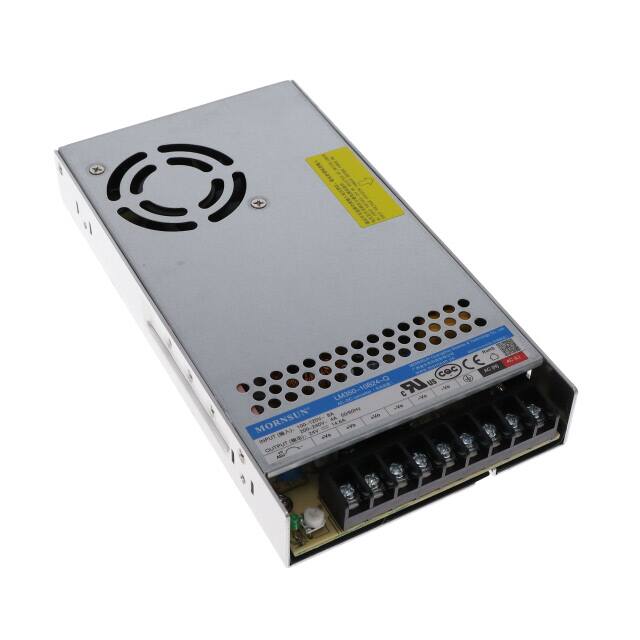

The LM350-10B24-Q from Morning Star Industrial is an AC/DC converter designed for reliability and performance. This unit features an enclosed and conformal coated construction, making it suitable for demanding environments. It is designed for chassis mounting and offers an adjustable output.
Key electrical specifications include a power rating of 350W and a current output of 14.6A. The converter operates with an efficiency of 87% and provides a high isolation voltage of 3kV. It is designed to handle a wide range of applications, including household appliances and ITE (Commercial) equipment.
The operating temperature range is -30°C to 70°C with derating. The physical dimensions are 215.0mm in length, 115.0mm in width, and 30.0mm in height. The LM350-10B24-Q complies with standard numbers 60335-1 and 62368-1, and holds certifications from CE, CQC, cURus, and UL.
Enclosed, conformal coated chassis mount package.
-30°C to 70°C with derating.
350W.
87%.
215.0mm x 115.0mm x 30.0mm.
60335-1 and 62368-1.
14.6 A.
