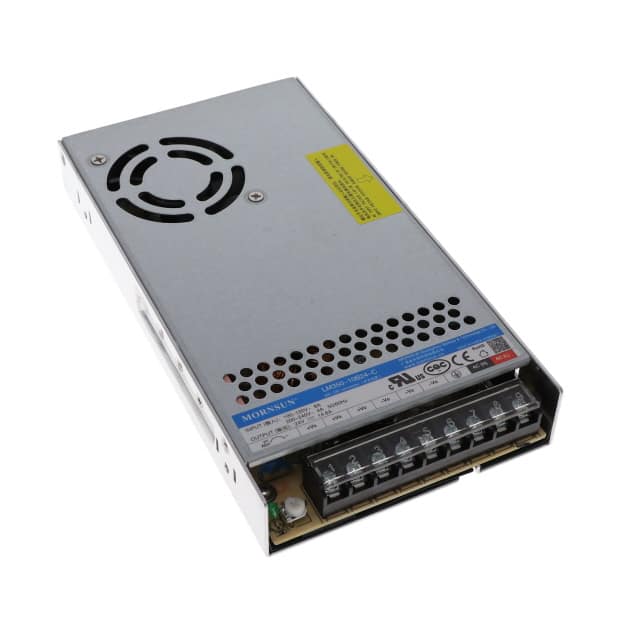

The LM350-10B24-C from Morning Star Industrial is an enclosed AC/DC converter designed for reliable power conversion. It delivers 350W of power with a 24V output voltage and a current rating of 14.6A.
This converter features a chassis mount type, making it suitable for integration into various systems. Key electrical specifications include an efficiency of 87% and a high isolation voltage of 3 kV. It supports universal input voltage ranges and is designed with adjustable output, DC input capability, and features for ITE (Commercial) and household appliance applications.
The operating temperature range is -30°C to 70°C with derating. The unit complies with standard numbers 60335-1 and 62368-1, and holds approvals from CE, CQC, cURus, and UL.
Its dimensions are 215.0mm in length, 115.0mm in width, and 30.0mm in height. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The LM350-10B24-C has a power output of 350W.
The output voltage is 24V.
The current rating is 14.6 A.
The operating temperature range is -30°C to 70°C (With Derating).
The dimensions are 215.0mm x 115.0mm x 30.0mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
