| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

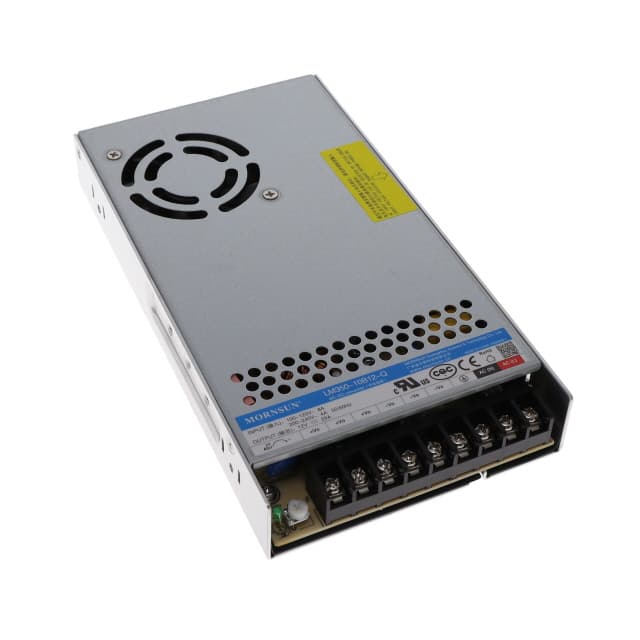

This AC/DC converter from Morning Star Industrial, part number LM350-10B12-Q, is designed for applications requiring a 12V output and delivering up to 348W of power. It operates with an efficiency of 85% and provides a current of 29A.
The converter features an enclosed design with conformal coating, suitable for chassis mounting. Key features include adjustable output, DC input capability, a standby output, and universal input, making it versatile for various power supply needs.
With dimensions of 215.0mm x 115.0mm x 30.0mm, it is designed for integration into systems where space is a consideration. The operating temperature range is -30°C to 70°C with derating. It meets safety standards including CE, CQC, cURus, and UL, and complies with standard numbers 60335-1 and 62368-1.
-30°C to 70°C with derating.
85%
12V
CE, CQC, cURus, UL
215mm x 115mm x 30mm
1
