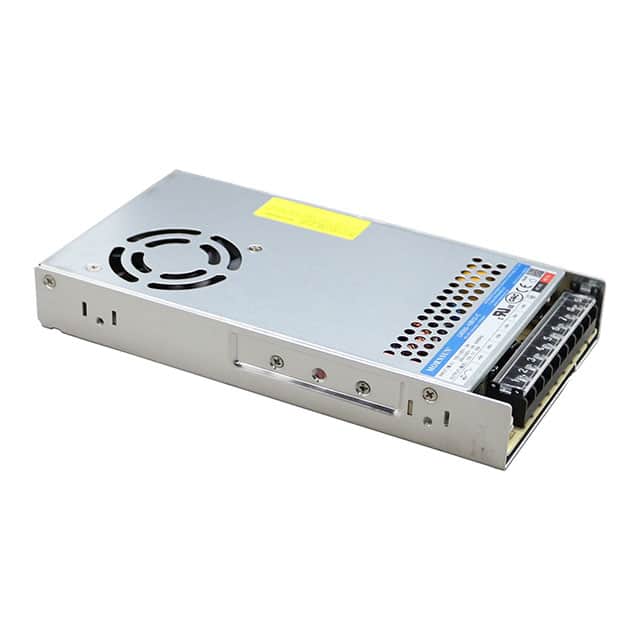

The LM350-10B12-C from Morning Star Industrial is an enclosed AC/DC converter designed for reliable power conversion. It delivers a single output of 12V with a substantial power rating of 348W and an output current of 29A.
This converter supports a wide input voltage range, including 90-132 VAC, 180-264 VAC, and 240-370 VDC, making it suitable for universal applications. It boasts an efficiency of 85% and features like adjustable output, DC input capability, standby output, and universal input.
With a robust isolation voltage of 4 kV, the LM350-10B12-C is built for safety and durability. Its operating temperature range is -30°C to 70°C with derating. The unit is designed for chassis mounting and has dimensions of 215.0mm x 115.0mm x 30.0mm.
Compliance with standards such as 60335-1 and 62368-1 is noted, along with RoHS3 compliance and unaffected REACH status. Applications include household appliances and ITE (Commercial) equipment.
The output voltage is 12V.
The maximum output current is 29A.
The power rating is 348W.
The operating temperature range is -30°C to 70°C with derating.
It is designed for chassis mounting.
Applications include household appliances and ITE (Commercial) equipment.
