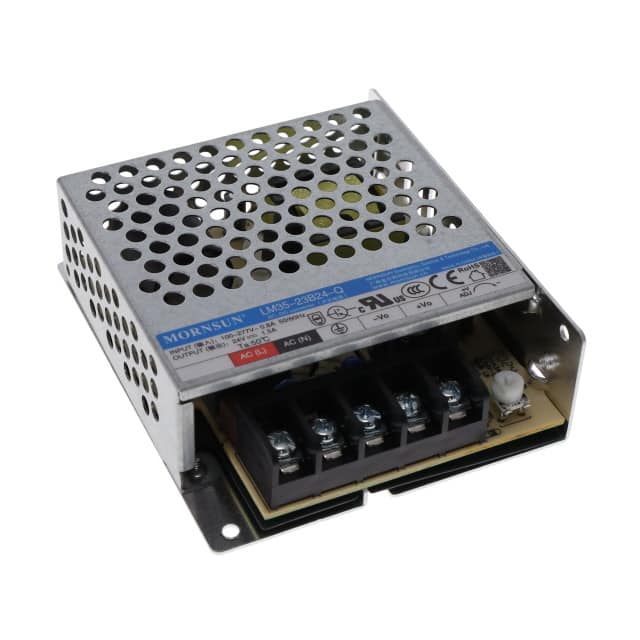

The Morning Star Industrial LM35-23B24-Q is an enclosed AC/DC switching power supply designed for reliable power conversion. It offers a universal input voltage range of 85-305VAC or 120-430VDC, making it suitable for global applications.
This power supply delivers a nominal output of 24V at 1.5A, providing a total output power of 36W. It boasts high efficiency of 87% and features essential protections including short circuit, over-current, and over-voltage.
The unit operates within an ambient temperature range of -30°C to +70°C (with derating) and has an isolation voltage of 4000VAC. Its dimensions are 99.0mm x 82.0mm x 30.0mm, and it is designed for chassis mounting.
Applications for this power supply include ITE (Commercial) and Household Appliances, meeting safety standards such as IEC/EN/UL62368 and EN60335.
The input voltage range is 85-305 VAC or 120-430 VDC.
The output is 24V at 1.5A, providing 36W.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 87%.
The input-to-output isolation voltage is 4000 VAC.
The dimensions are 99.0mm x 82.0mm x 30.0mm (3.90" x 3.23" x 1.18").
It complies with IEC/EN/UL62368, EN60335, EN61558, and GB4943.
