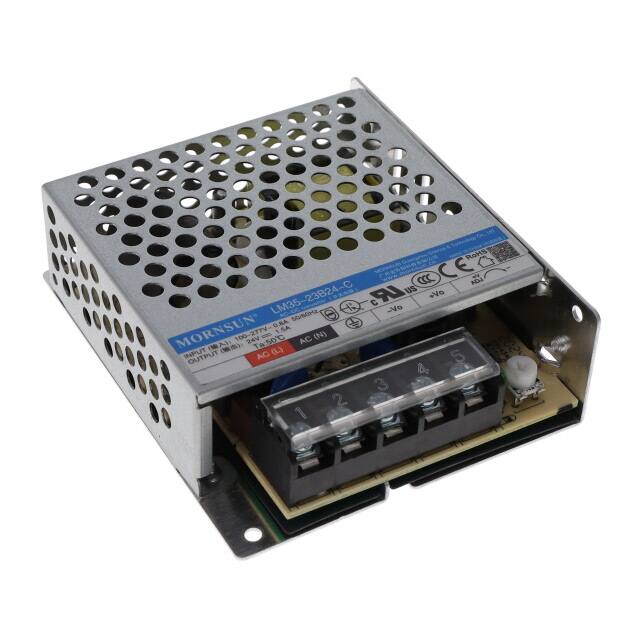

The LM35-23B24-C from Morning Star Industrial is an enclosed AC DC converter designed for various applications. It delivers 36W of power with a single 24V output at 1.5A.
Key electrical specifications include an input voltage range of 85-305 VAC or 120-430 VDC, and an efficiency of 87%. The converter offers universal input and is capable of DC input. It provides 4 kV of isolation voltage.
Designed for easy integration, this unit features a chassis mount type. Its dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height. The operating temperature range is -30°C to 70°C with derating. It is suitable for applications in Household Appliances and ITE (Commercial) sectors.
Compliance is indicated by approval agencies such as CB, CCC, CE, cURus, and UL. The standard numbers it adheres to are 60335-1 and 62368-1.
The output voltage is 24V.
The maximum output current is 1.5 A.
The input voltage range is 85 ~ 305 VAC or 120 ~ 430 VDC.
The power rating is 36W.
The dimensions are 99.0mm L x 82.0mm W x 30.0mm H.
The operating temperature range is -30°C to 70°C (With Derating).
The RoHS status is RoHS3 Compliant.
