| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

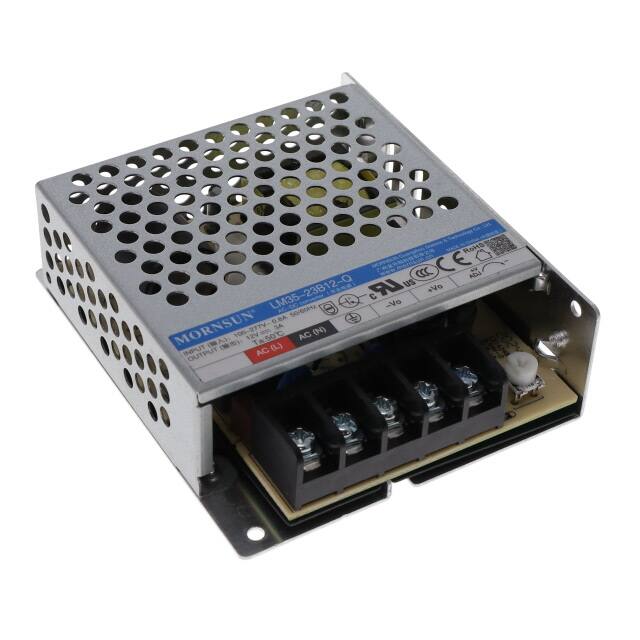

This Mornsun LM35-23B12-Q is a 36W AC DC converter designed for reliable power conversion. It operates with a universal input voltage range of 85-305 VAC or 120-430 VDC and provides a stable 12V output.
The converter is enclosed and features conformal coating for added protection. Its dimensions are 99.0mm x 82.0mm x 30.0mm, and it is designed for convenient chassis mounting. Key features include adjustable output, DC input capability, and an efficiency of 88%.
Designed for applications in household appliances and ITE (Commercial) equipment, this AC DC converter meets various safety standards, including CB, CCC, CE, cURus, and UL. The isolation voltage is rated at 4 kV, and it operates within a temperature range of -30°C to 70°C with derating.
It offers a single output with a maximum current of 3A. The unit is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
85~305 VAC or 120~430 VDC.
12V at 3A.
-30°C to 70°C with derating.
4kV.
99.0mm x 82.0mm x 30.0mm.
CB, CCC, CE, cURus, UL.
Box.
