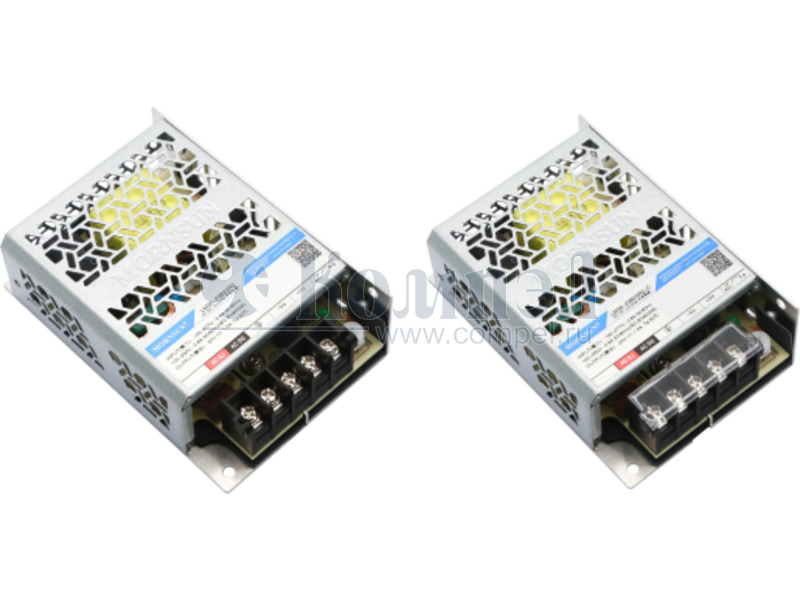

The Mornsun LM35-23B05R2 is an enclosed AC/DC switching power supply designed for industrial applications. It delivers 35W of output power with a nominal output voltage of 5V and a maximum current of 7A. The unit features a wide universal input voltage range of 80-305VAC and also accepts DC input.
Key electrical specifications include an efficiency of 86% and an input-to-output isolation voltage of 4000VAC. The operating temperature range is -40°C to +85°C, with derating. Mechanically, the converter measures 99.0mm x 65.0mm x 30.0mm and is designed for chassis mounting.
This series meets safety standards such as IEC/UL/EN/BS EN62368 and EN60335-1. It is suitable for applications in household appliances and ITE (Commercial) environments. The power supply offers features like adjustable output and DC input capability.
The input voltage range is 80-305VAC or 100-430VDC.
The output is 5V at 7A, providing 35W of power.
The operating temperature range is -40°C to 85°C with derating.
The efficiency is 86%.
The isolation voltage is 4000VAC.
The dimensions are 99.0mm x 65.0mm x 30.0mm (3.90" x 2.56" x 1.18").
The mounting type is chassis mount.
