| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

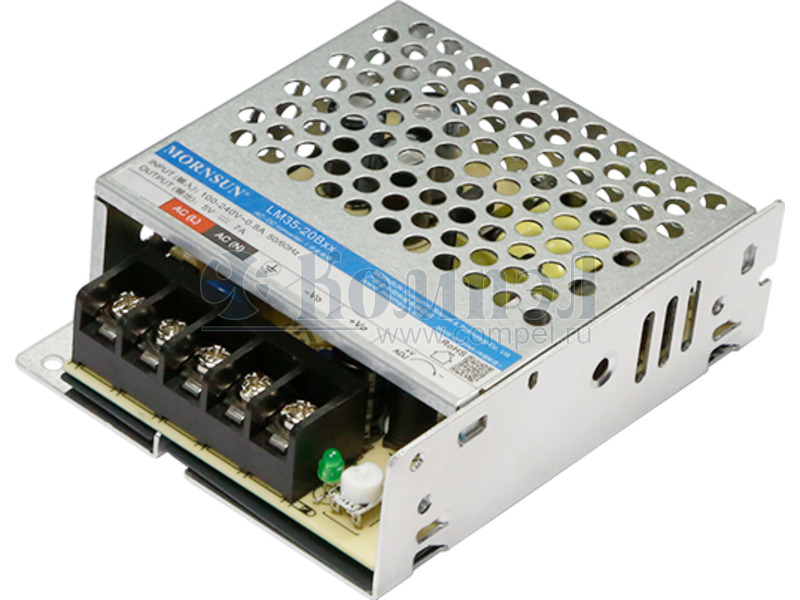

The Mornsun LM35-20B24-Q is an enclosed AC/DC switching power supply designed for reliable power conversion. It features a universal input voltage range of 85-264VAC or 120-370VDC, accepting both AC and DC sources.
This power supply delivers a nominal output of 24V at 1.5A, providing up to 36W of power. It boasts high efficiency of 88% and features like adjustable output, DC input capability, and universal input.
Designed for industrial and commercial applications, the LM35-20B24-Q has a chassis mount type and operates within an ambient temperature range of -30°C to +70°C. It meets key safety standards including UL62368-1 and EN62368-1, with an isolation voltage of 4000VAC.
Key specifications include a compact size of 99.0mm x 82.0mm x 30.0mm and compliance with RoHS3 standards.
The nominal output voltage is 24V.
The maximum output current is 1.5A.
The power rating is 36W.
It accepts a universal input voltage range of 85-264VAC or 120-370VDC.
The operating temperature range is -30°C to +70°C.
It is a chassis mount type.
