| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

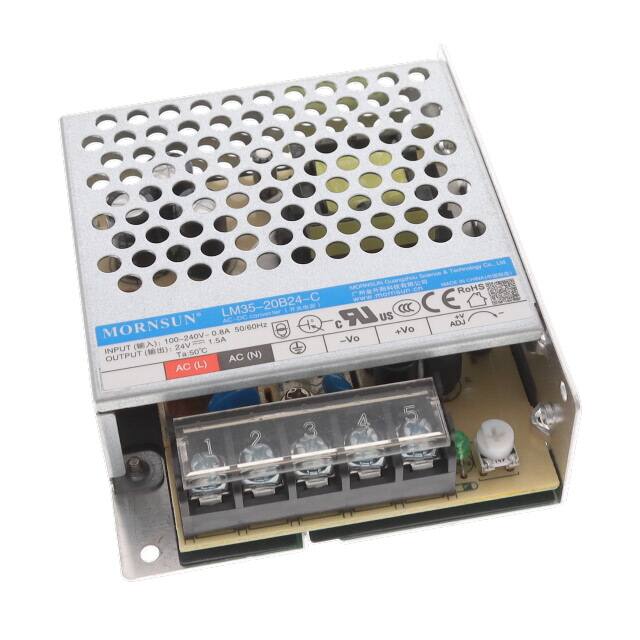

The Mornsun LM35-20B24-C is an enclosed AC/DC converter designed for various applications, including household appliances and ITE commercial equipment. It provides a single 24V output with a power rating of 36W and a current capability of 1.5A.
This converter accepts a wide input voltage range of 85-264 VAC or 120-370 VDC, offering flexibility in power source selection. It features adjustable output, DC input capability, and universal input. The unit is designed for chassis mounting and has dimensions of 99.0mm x 82.0mm x 30.0mm.
Key specifications include an efficiency of 88% and an isolation voltage of 4 kV. The operating temperature range is -30°C to 70°C with derating. It complies with standards such as 60335-1 and 62368-1 and is RoHS3 compliant.
85-264 VAC or 120-370 VDC.
24V at 1.5A.
88%.
4 kV.
-30°C to 70°C with derating.
CB, CCC, CE, cURus, UL.
Box (chassis mount).
