| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

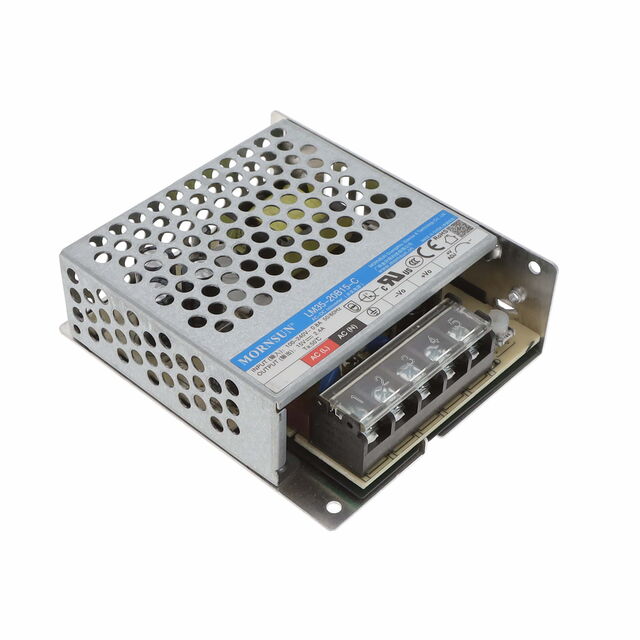

This Mornsun America, LLC LM35-20B15-C is an enclosed AC/DC converter designed for applications requiring a stable 15V output with a power rating of 36W. It offers a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global use.
The converter features a chassis mount type for easy integration into systems. With an efficiency of 89% and an isolation voltage of 4 kV, it is designed for reliable performance. The operating temperature range is -30°C to 70°C with derating.
Key specifications include a single output, 2.4A output current, and compliance with standards such as 60335-1 and 62368-1, approved by agencies including CB, CCC, CE, cURus, and UL. Its dimensions are 99.0mm x 82.0mm x 30.0mm.
Applications for this AC/DC converter include household appliances and ITE (Commercial) equipment, providing a robust power solution for various electronic devices.
The LM35-20B15-C provides a single output voltage of 15V with a current rating of 2.4A.
The power rating for the LM35-20B15-C is 36W.
The converter accepts a universal input voltage range of 85 ~ 264 VAC or 120 ~ 370 VDC.
The LM35-20B15-C operates within a temperature range of -30°C to 70°C, with derating applied.
The dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height.
It complies with standards 60335-1 and 62368-1 and is approved by CB, CCC, CE, cURus, and UL.
