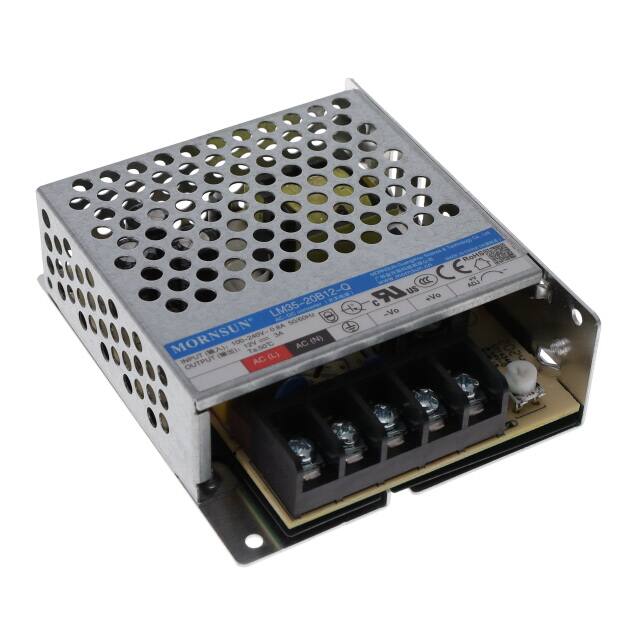

This AC/DC converter from Morning Star Industrial, part number LM35-20B12-Q, provides 36W of power with a 12V output and 3A current. It is designed for chassis mounting and offers a universal input voltage range, making it suitable for various applications.
The converter operates within a temperature range of -30°C to 70°C with derating and boasts an efficiency of 88%. It includes features such as adjustable output, DC input capability, and isolation voltage of 4kV. The unit is enclosed and conformal coated for added protection.
Compliance includes CB, CCC, CE, cURus, and UL certifications, along with RoHS3 compliance. The dimensions are 99.0mm in length, 82.0mm in width, and 30.0mm in height. This converter is suitable for household appliances and ITE (Commercial) applications.
The output is 12V at 3A.
The operating temperature range is -30°C to 70°C with derating.
It is approved by CB, CCC, CE, cURus, and UL per standards 60335-1 and 62368-1.
Efficiency is 88%.
The input-to-output isolation voltage is 4 kV.
Yes, the output is adjustable.
Dimensions are 99.0 mm (length) x 82.0 mm (width) x 30.0 mm (height).
