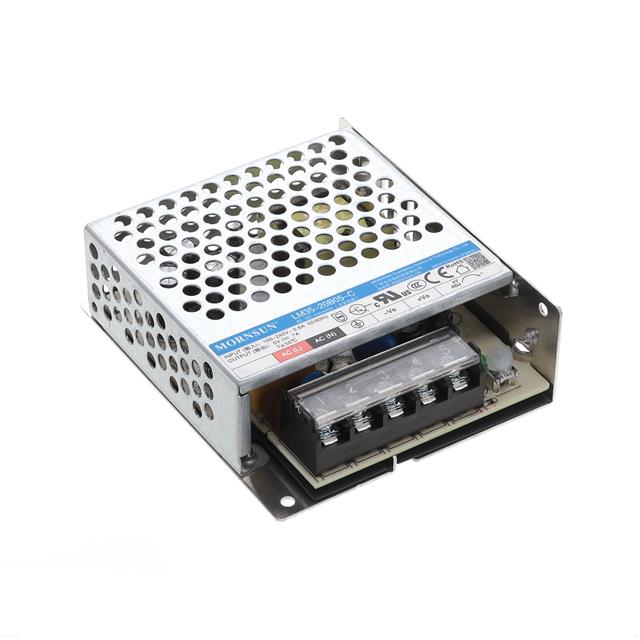

The Mornsun LM35-20B05-C is an enclosed AC/DC converter designed for reliable power conversion. It delivers a stable 5V output with a maximum current of 7A, providing a total power of 35W. This converter operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications.
With an efficiency rating of 86%, the LM35-20B05-C minimizes energy waste. It offers 4kV of isolation voltage for enhanced safety. The operating temperature range is -30°C to 70°C with derating, ensuring performance in various environmental conditions. Its dimensions are 99.0mm x 82.0mm x 30.0mm.
Designed for ease of integration, this converter features a chassis mount type. It is approved by multiple agencies including CB, CCC, CE, cURus, and UL, meeting stringent industry standards such as 60335-1 and 62368-1. The LM35-20B05-C is suitable for applications in household appliances and ITE (Commercial) environments.
The input voltage range is 85~264 VAC or 120~370 VDC.
The package is enclosed and chassis mount.
The operating temperature range is -30°C to 70°C with derating.
The output voltage is 5V.
The output current is 7A.
The power rating is 35W.
It is approved by CB, CCC, CE, cURus, and UL.
