| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

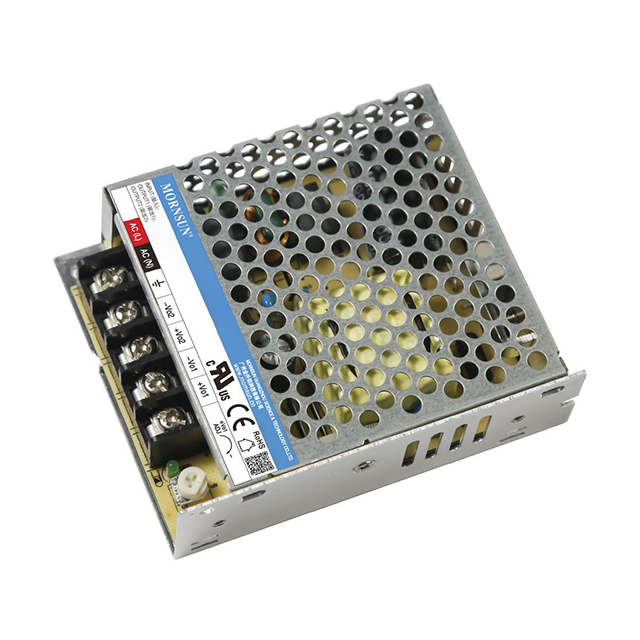

The LM35-10D0524-10 from Morning Star Industrial is an enclosed AC/DC converter designed for reliable power conversion. It operates with a universal input voltage range of 85-264 VAC or 120-373 VDC, making it suitable for global applications. This converter provides two output voltages: 5V at 2.2A and 24V at 1A, totaling 35W of power with an efficiency of 83%.
Key features include adjustable output and universal input capabilities, along with an isolation voltage of 3 kV. The unit is designed for chassis mounting, facilitating integration into various systems. Its operating temperature range is -30°C to 70°C with derating.
This AC/DC converter is approved by CE, cURus, and UL, and complies with standards such as 60335-1 and 62368-1. It is suitable for applications in household appliances and ITE (Commercial) environments. The RoHS status is RoHS3 Compliant, REACH is Unaffected, and MSL is 1 Unlimited.
The input voltage range is 85-264 VAC or 120-373 VDC.
Output 1 provides 5V at 2.2A, output 2 provides 24V at 1A.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 83%.
The isolation voltage is 3 kV.
Dimensions are 99.0 mm (length) x 97.0 mm (width) x 30.0 mm (height).
It uses chassis mount mounting type.
