| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

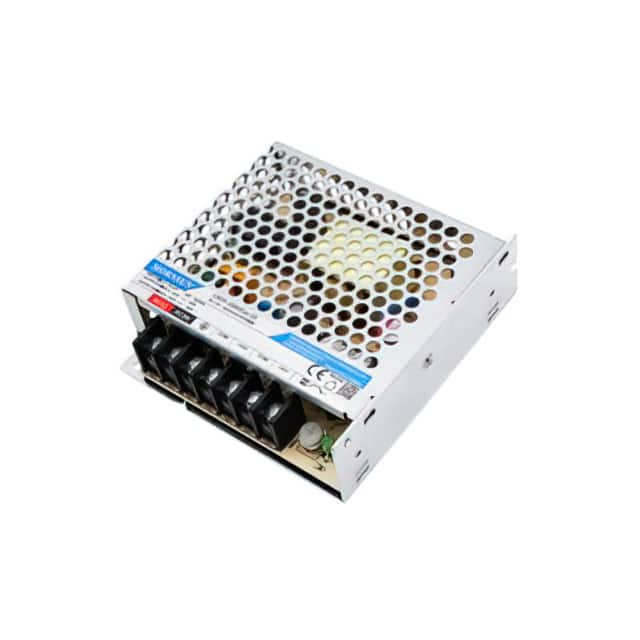

The Mornsun LM35-10A0524-10 is a 35W enclosed AC/DC switching power supply designed for applications requiring dual outputs. It provides a nominal 5V output at 2.2A and a 24V output at 1A, suitable for powering multiple system components simultaneously.
This converter operates with a universal input voltage range of 85-264 VAC or 120-370 VDC, offering flexibility in power source selection. It boasts an efficiency of 80% at 230 VAC and operates reliably within an ambient temperature range of -30°C to +70°C without the need for a fan.
Key features include output short circuit, over-current, and over-voltage protection. The unit meets safety standards such as IEC/UL62368, EN60335, and GB4943. Its enclosed, chassis mount package makes it suitable for integration into industrial control equipment, instrumentation, and other applications.
With dimensions of 97.0mm x 90.0mm x 30.0mm, the LM35-10A0524-10 offers a compact power solution. It also provides excellent EMC performance and meets EN62368-1 and BSEN62368-1 standards.
The LM35-10A0524-10 provides a 5V output at 2.2A and a 24V output at 1A.
The input voltage range is 85-264 VAC or 120-370 VDC.
The operating temperature range is -30°C to 70°C with derating.
The total power output is 35W.
It uses chassis mount.
It meets IEC/UL62368, EN60335, and GB4943 standards.
