| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
923 pcs
|
923 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Input Voltage | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Quiescent Current | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel |
The LM3480IM3-15 from Texas Instruments is a low-dropout linear voltage regulator designed for positive voltage regulation in space-limited, low-power applications. It provides a reliable 15V steady output with a maximum load current of 100mA. The device features a low quiescent current of 2mA, making it suitable for efficient standby operation.
Key electrical specifications include an input voltage range up to 30V and a maximum voltage dropout of 1.2V at 100mA. The regulator is built with integrated protection against overcurrent and overtemperature conditions, enhancing device longevity and safety. It operates reliably across a wide temperature range from -40°C to +125°C.

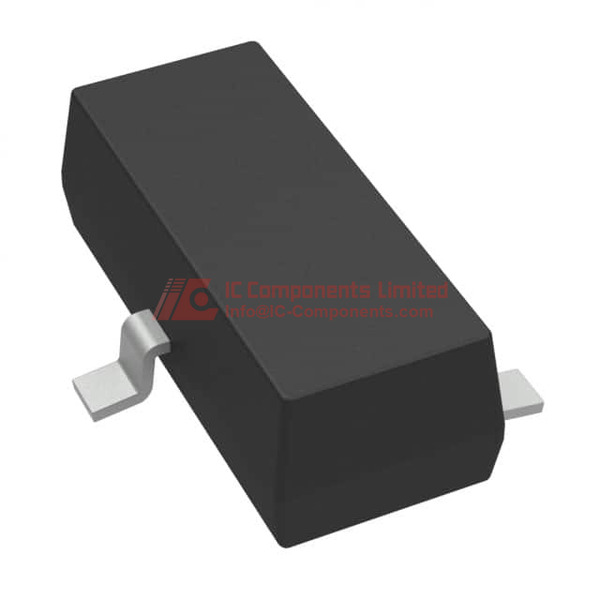

This component is housed in a compact SOT-23-3 surface-mount package, ideal for automated assembly processes when supplied on tape and reel. Its design is a single-channel, positive linear regulator, suitable for applications requiring space-saving and fixed positive 15V voltage regulation.
It is important to note that this part is obsolete and not recommended for new designs. Applications include low-power electronic devices, sensor modules, communication equipment, portable instruments, and microcontroller supply rails.
The LM3480IM3-15 has a fixed output voltage of 15V.
The maximum output current for the LM3480IM3-15 is 100mA.
The LM3480IM3-15 operates within a temperature range of -40°C to 125°C.
The LM3480IM3-15 is supplied in a SOT-23-3 package.
Yes, the LM3480IM3-15 has built-in protection against overcurrent.
No, the LM3480IM3-15 is obsolete and not recommended for new designs.
